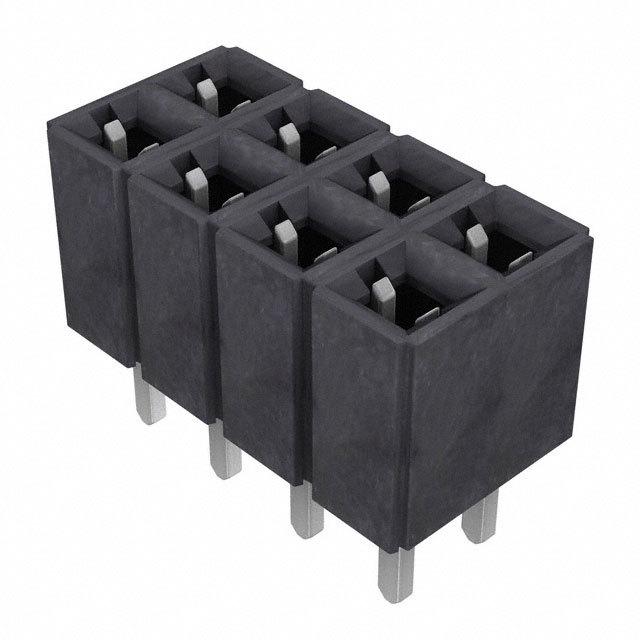

SLW-104-01-T-D

SAMTEC SLW-104-01-T-D Board-To-Board Connector, 2.54mm, 8Contacts, Receptacle, SLW Series, Through Hole, 2Rows

8 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 8POS 0.1 TIN PCB

艾睿:
Think of Samtec&s;s socket strip SLW-104-01-T-D header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This SKT connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 50 VAC. It has a socket type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 5.2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 4.57 mm tall and 4.95 mm deep. SLW-104-01-T-D is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SLW-104-01-T-D  Board-To-Board Connector, 2.54 mm, 8 Contacts, Receptacle, SLW Series, Through Hole, 2 Rows
