SLS-24-072T

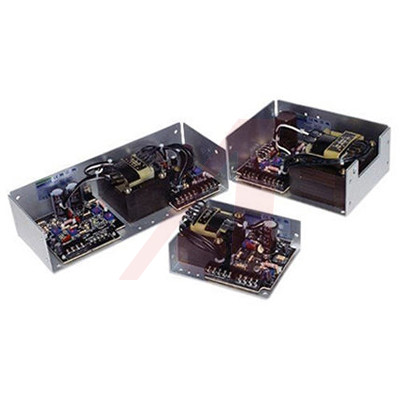

SLS-24-072T图片1
SLS-24-072T图片2
SLS-24-072T图片3

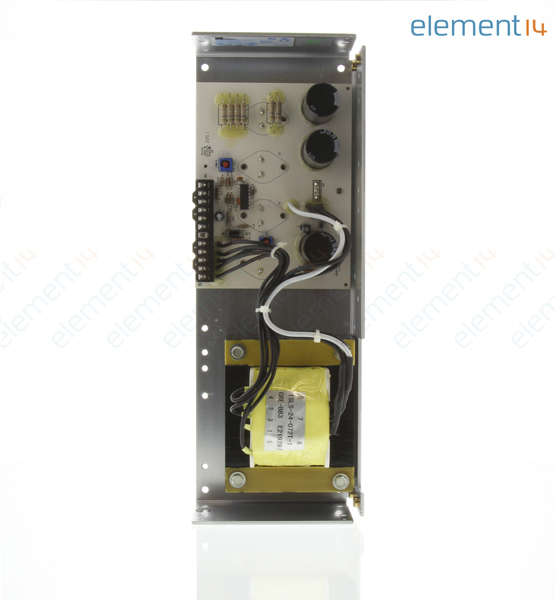

SLS-24-072T图片4
SLS-24-072T概述

The SLS-24-072T is a Silver-Line-series 7.2A/24VDC 172.8W fixed single-output Linear Power Supply, easy-to-install screw terminal connections, with industry standard footprint, universal input and approvals 115/230VAC, low noise, extremely quiet DC output, for noise sensitive or analogue circuitry. Fast transient response. Ideal for test applications, 3mV maximum peak-to-peak.

开放框架 AC DC 转换器 1 输出 24V - - - 7.2A 100 ~ 240VAC 输入


得捷:
AC/DC CONVERTER 24V 173W


欧时:
Power Supply,Single Output,Silver Line


Allied Electronics:
Power Supply; AC-DC; 24V@7.2A; 100-240V In; Open Frame; Linear; Silver Line Series


Verical:
AC/DC Power Supply Single-OUT 24V 7.2A 11-Pin


Newark:
# SOLAHD  SLS-24-072T  Linear Power Supply, Fixed, 1 Outputs, 100 V, 240 V, 172.8 W, 24 V


SLS-24-072T中文资料参数规格
技术参数

频率 47Hz ~ 63Hz

额定电流 7.2 A

输出接口数 1

输出电压 24 VDC

输出电流 7.2 A

输出功率 172.8 W

输入电压AC Max 240 v

输入电压AC Min 100 v

输出功率Max 172.8 W

工作温度Max 50 ℃

工作温度Min 0 ℃

输入电压 100VAC ~ 240VAC

封装参数

引脚数 11

外形尺寸

高度 82.5 mm

物理参数

工作温度 0℃ ~ 50℃

其他

产品生命周期 Not For New Designs

制造应用 ITE(商业)

符合标准

RoHS标准 RoHS Compliant

含铅标准 Not applicable

数据手册

在线购买SLS-24-072T
型号: SLS-24-072T
制造商: SolaHD
描述:The SLS-24-072T is a Silver-Line-series 7.2A/24VDC 172.8W fixed single-output Linear Power Supply, easy-to-install screw terminal connections, with industry standard footprint, universal input and approvals 115/230VAC, low noise, extremely quiet DC output, for noise sensitive or analogue circuitry. Fast transient response. Ideal for test applications, 3mV maximum peak-to-peak.
