SSM-113-S-DH

Conn Socket Strip SKT 26POS 2.54mm Solder RA SMD Tube

26 位置 插座 0.100"（2.54mm） 表面贴装，直角 镀金

得捷:
CONN RCPT .100" 26POS DUAL HORZ

立创商城:
2.54mm

艾睿:

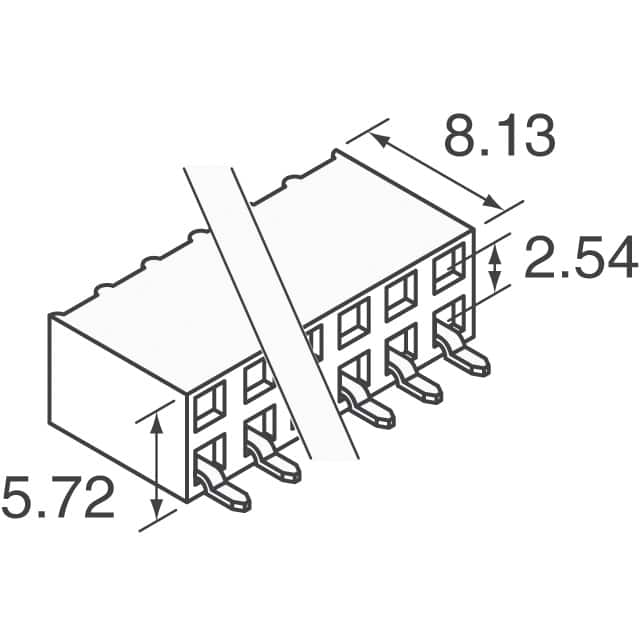

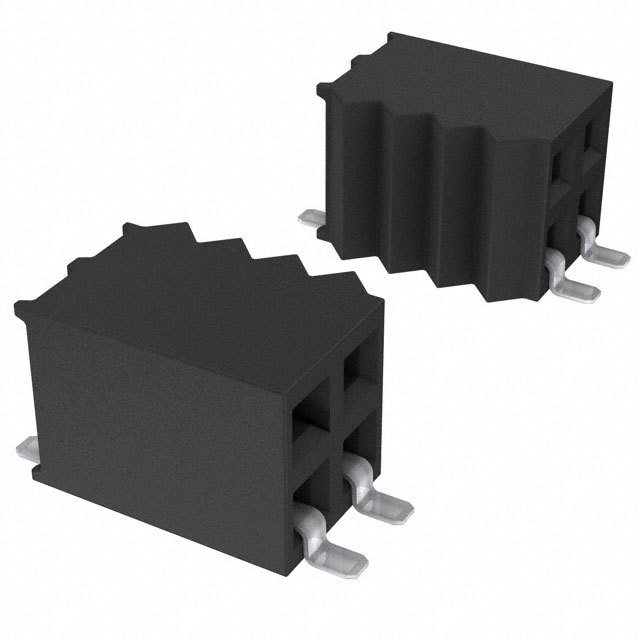

Mounting this socket strip SSM-113-S-DH header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. It has a socket type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 33.02 mm long, 5.72 mm tall and 11.18 mm deep. SSM-113-S-DH is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 26 POS 2.54mm Solder RA SMD Tube

Verical:
Conn Socket Strip SKT 26 POS 2.54mm Solder RA Side Entry SMD Tube
