SSM-112-S-SV

Conn Socket Strip SKT 12POS 2.54mm Solder ST SMD Tube

12 位置 插座，通透式 0.100"（2.54mm） 表面贴装型 镀金

得捷:
CONN RCPT 12POS 0.1 GOLD SMD

艾睿:

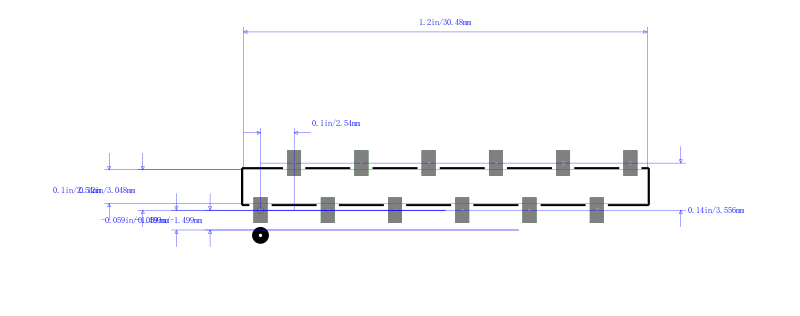

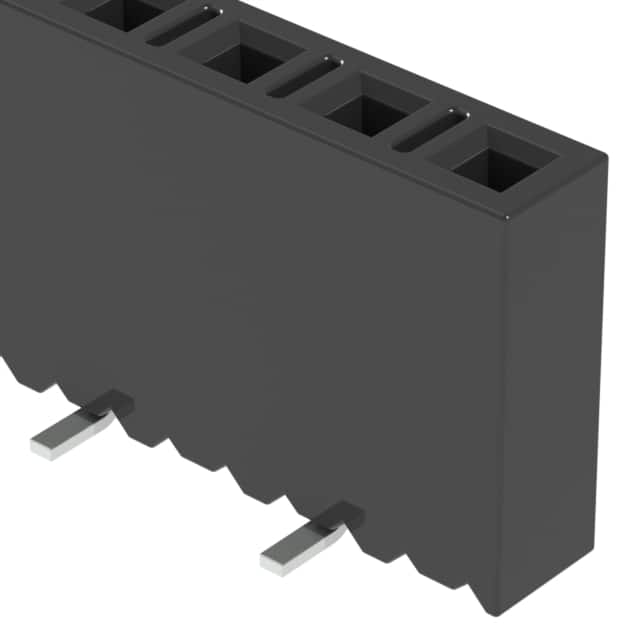

Think of Samtec&s;s socket strip SSM-112-S-SV header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This SKT connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 510 VDC|360VAC. Its pitch is 2.54 mm. It has a socket type gender. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. SSM-112-S-SV is housed in black liquid crystal polymer. This product is 30.48 mm long, 7.37 mm tall and 4.42 mm deep. This connector has an operating temperature of -55 to 125 °C.

Verical:
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Top Entry SMD Tube
