SSM-105-F-DV

SSM-105-F-DV图片1
SSM-105-F-DV概述

Conn Socket Strip SKT 10POS 2.54mm Solder ST SMD Tube

10 Position Receptacle, Pass Through Connector 0.100" 2.54mm Surface Mount Gold


得捷:
CONN RCPT .100" 10POS DUAL VERT


艾睿:
Support physical configuration options for jumper posts by mounting this socket strip SSM-105-F-DV header connector from Samtec. This SKT connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 510 VDC|360VAC. Its pitch is 2.54 mm. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 12.7 mm long, 7.37 mm tall and 7.04 mm deep. It uses the solder termination method. SSM-105-F-DV is housed in black liquid crystal polymer.


安富利:
Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Tube


SSM-105-F-DV中文资料参数规格
技术参数

触点数 10

极性 Female

额定电流 5.2A/触头

排数 2

针脚数 10

额定电流Max 5.2A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 405VAC, 572VDC

接触电阻Max 10 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 7.37 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

SSM-105-F-DV引脚图与封装图

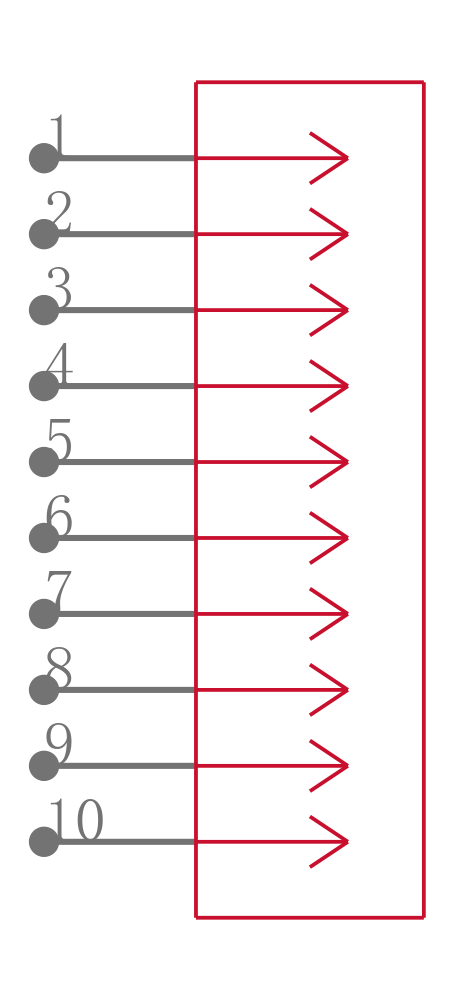

SSM-105-F-DV引脚图

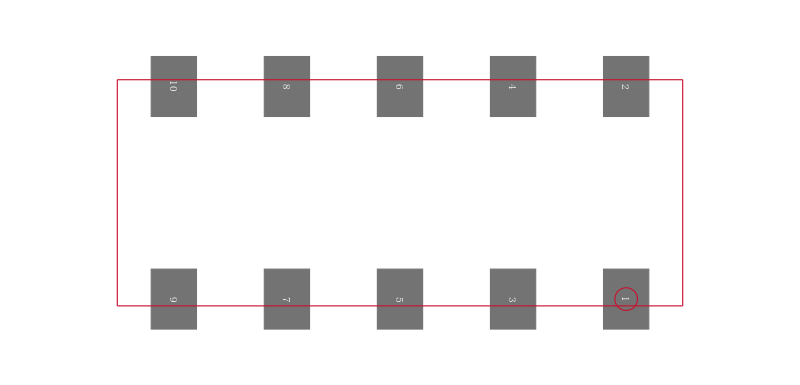

SSM-105-F-DV封装图

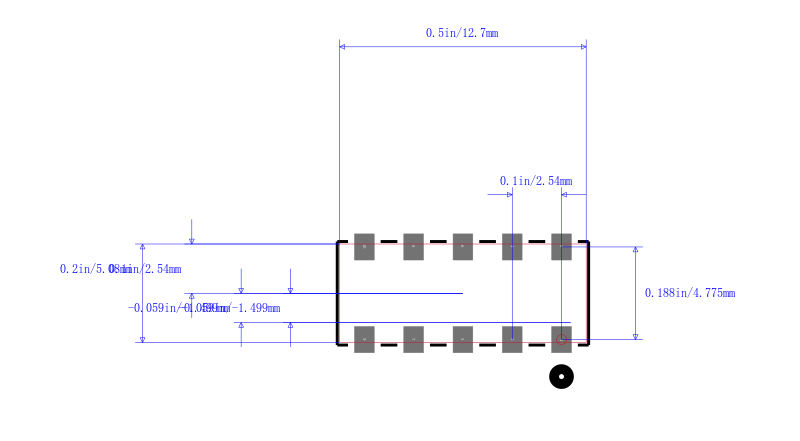

SSM-105-F-DV封装焊盘图
在线购买SSM-105-F-DV
型号: SSM-105-F-DV
描述:Conn Socket Strip SKT 10POS 2.54mm Solder ST SMD Tube
替代型号SSM-105-F-DV
型号/品牌 代替类型 替代型号对比

SSM-105-F-DV

Samtec 申泰电子

当前型号

当前型号

SSM-105-L-DV

申泰电子

完全替代

SSM-105-F-DV和SSM-105-L-DV的区别

SSM-105-L-DV-TR

申泰电子

完全替代

SSM-105-F-DV和SSM-105-L-DV-TR的区别

SSM-105-S-DV-TR

申泰电子

完全替代

SSM-105-F-DV和SSM-105-S-DV-TR的区别
