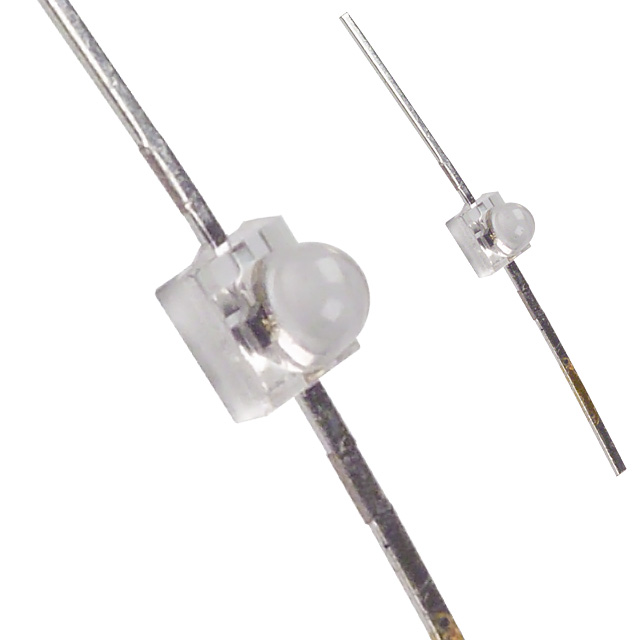

LUMEX SSL-LXA228SYC LED, QuasarBrite, Yellow, SMD, 1.9mm, 20mA, 2V, 585nm
** - Octo Range**
The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of Colors and lens finishes.
正向电压 2 V
波长 585 nm
发光强度 300 mcd
视角 25°
透镜样式 Non-Diffused
峰值波长 585 nm
测试电流 20 mA
正向电流 20 mA
安装方式 Through Hole
引脚数 2
封装 Axial, Flat Leads
高度 2.80 mm
直径 1.90 mm
封装 Axial, Flat Leads
颜色 Yellow
外观颜色 Clear
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SSL-LXA228SYC Lumex 鲁美科思 | 当前型号 | 当前型号 |
SSL-LXA228SYC-TR11 鲁美科思 | 功能相似 | SSL-LXA228SYC和SSL-LXA228SYC-TR11的区别 |
SSL-LXA228SYC-TR21 鲁美科思 | 功能相似 | SSL-LXA228SYC和SSL-LXA228SYC-TR21的区别 |
