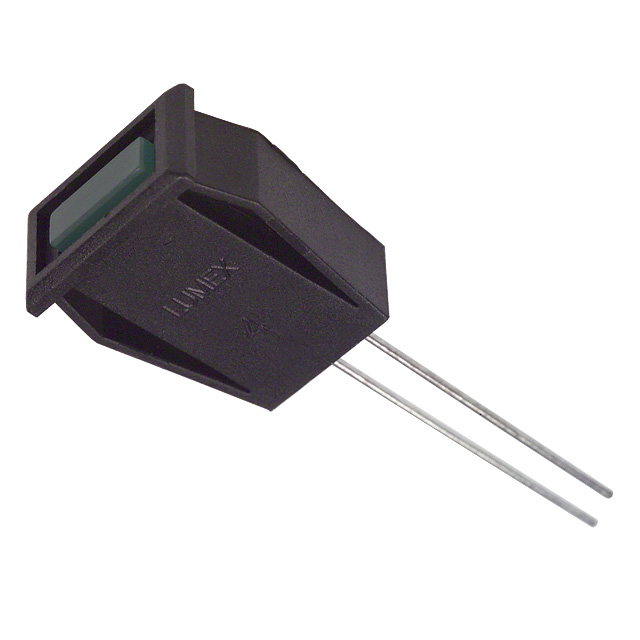

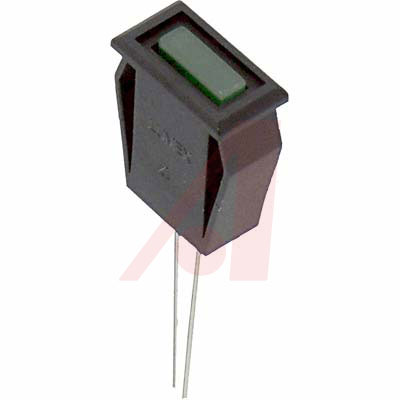

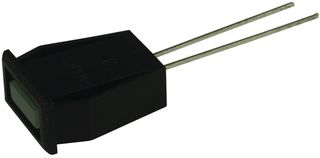

2.3 x 7 mm 110° 漫射式 9 mcd 2.2 V 矩形 LED 面板 指示灯
Indicator, Green Color, 110 ° Typ. Viewing Angle, 2.2 V Typ. Forward Voltage Rating
* Maximum operating temperature is +85 °C
Luminous intensity is 9 mcd Typ. @ If==20 mA Axial
得捷:
LED 2.3X7MM GREEN PANEL MOUNT
Allied Electronics:
Indicator, Pnl-Mnt; Diffused Lens LED; Green; 9mcd; 110deg; 105mW; 0.551In; 150mA; -40deg
Verical:
LED Panel Mount Indicator uni color
Newark:
# LUMEX SSI-LXH072GD LED Panel Mount Indicator, QuasarBrite, Green, 2.2 VDC, 20 mA, 9 mcd, Not Rated
MASTER:
LED Uni-Color Green 565nm 2-Pin
Online Components:
LED Uni-Color Green 565nm 2-Pin
Electro Sonic:
LED Uni-Color Green 565nm 2-Pin
触点数 2
工作电压 2.2 VDC
正向电压 2.2 V
波长 565 nm
发光强度 9 mcd
视角 110°
透镜样式 Diffused
峰值波长 565 nm
耗散功率 105 W
测试电流 20 mA
正向电流 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.2 VDC
安装方式 Panel
引脚数 2
宽度 6.65 mm
高度 15.2 mm
颜色 Green
工作温度 -40℃ ~ 85℃
外观颜色 Green
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
