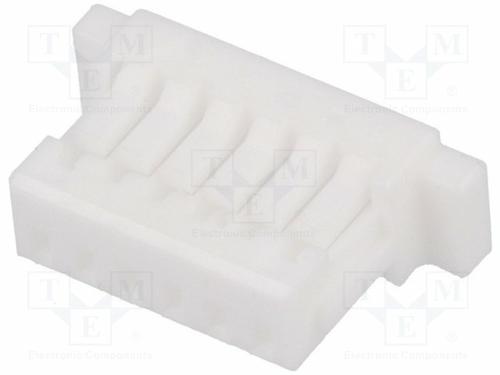

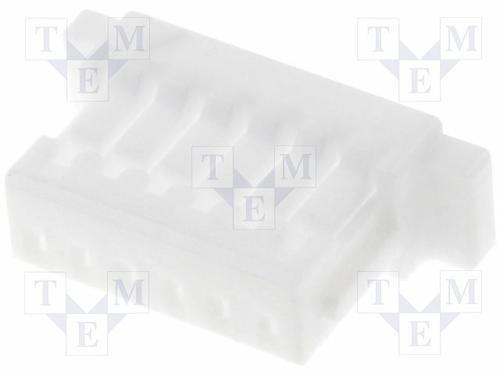

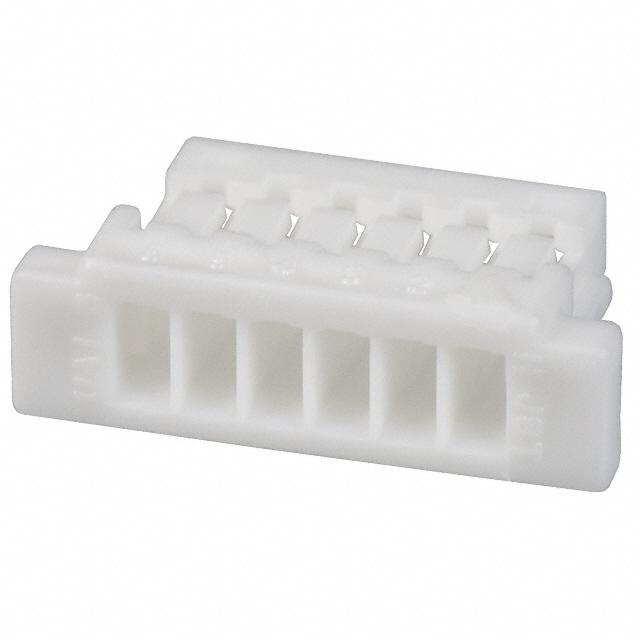

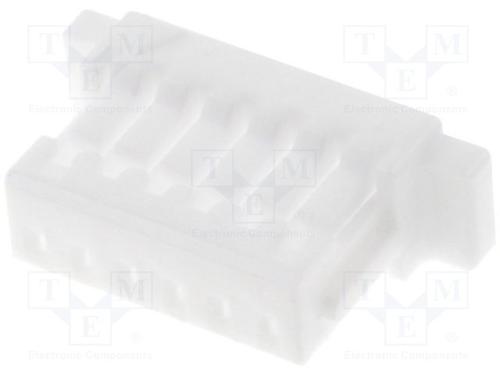

SHR-06V-S-B

JST JAPAN SOLDERLESS TERMINALS  SHR-06V-S-B  连接器外壳, 插座, 6 路, 1 mm, SSH-003T-P0.2-H

公司对SH系列凸起式外壳为1mm间距,单排外壳, 用于SH系列压接触芯.

.

触芯数2至20

.

UL94V-0认证对苯二甲酸丁二醇酯材料

.

自然色

欧时:
connector,multipole PCB use,SHR-06V-S-B

得捷:
CONN RCPT HSG 6POS 1.00MM

立创商城:
1mm 1x6P

艾睿:
Think of JST Corporation&s;s SHR-06V-S-B discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 6 RCP contacts. It has a straight body orientation. This is a 1-row connector. Its pitch is 1 mm. It has a maximum voltage rating of 50 VDC|50VAC. It has a receptacle type gender. This device has a maximum current rating of 1 A. Its wire is 28-32 AWG. This rectangle connector has an operating temperature of -25 to 85 °C. SHR-06V-S-B is housed in white polybutylene terephthalate. This product is 9 mm long, 2.8 mm tall and 5 mm deep.

Chip1Stop:
Conn Housing RCP 6 POS 1mm Crimp ST Cable Mount Box

TME:
Plug; wire-board; female; SH; 1mm; PIN:6; w/o contacts; for cable

Verical:
Conn Housing RCP 6 POS 1mm Crimp ST Cable Mount White Box

Newark:
# JST JAPAN SOLDERLESS TERMINALS  SHR-06V-S-B  Connector Housing, SH Series, Receptacle, 6 Positions, 1 mm, SSH-003T-P0.2-H Contacts

CDI:
Housing, WithProtrusions, 6Circuit1.0mmPitch, SM
