SPC5743RK1MLU5

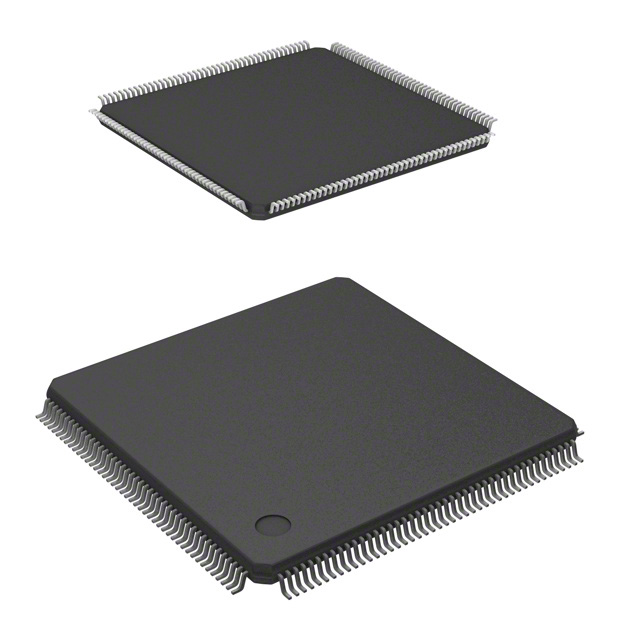

SPC5743RK1MLU5图片1
SPC5743RK1MLU5图片2
SPC5743RK1MLU5概述

PowerPC系列 200MHz 2MB 128KB

Overview

The MPC5746R Power Architecture® MCU targets industrial and automotive engine/transmission control applications that require advanced performance, timing systems and functional safety capabilities. The family offers a high performance multi-core architecture with industry standard eTPU based timer system. Scalable Flash, core configurations and packaging options are available along with the highest level of functional safety ASIL-D support.

MoreLess

## Features

* Two independent 200MHz Power Architecture® z4 cores

* Single 200MHz z4 core in Lockstep with one of the main cores

* 4M Flash

* 320kB total SRAM

* 2 eTPU+ timers with 64 channels

* eMIOS timer with 32 channels

* Ethernet 10/100

* 4 Sigma Delta and 3 SAR ADC converters

* Built to support functional safety ISO 26262/ASIL-D

* 252 MAPBGA, 176 LQFP and 144 LQFP packages

* -40 to 125C Ta Operation

## Features

SPC5743RK1MLU5中文资料参数规格
技术参数

RAM大小 128 x 8

FLASH内存容量 2000 kB

模数转换数ADC 2

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 176

封装 LQFP-176

外形尺寸

封装 LQFP-176

物理参数

重量 1868.5 mg

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SPC5743RK1MLU5
型号: SPC5743RK1MLU5
制造商: NXP 恩智浦
描述:PowerPC系列 200MHz 2MB 128KB
