微控制器, 三核, MPC5 Family MPC57xx Series Microcontrollers, 电源架构, 32位, 160 MHz, 6 MB, 768 KB

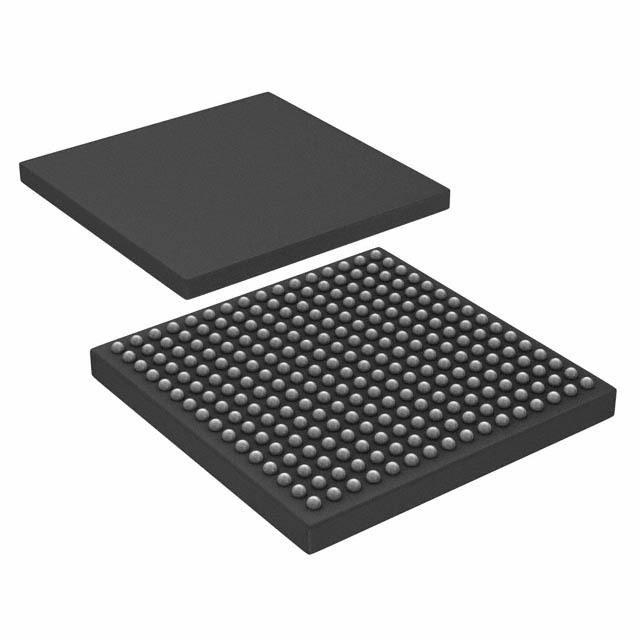

The is a MPC5748G microcontroller in 256 pin MAPBGA package. The MPC574xG family of MCU provides a highly integrated, safe and secure single-chip solution for next-generation central body control, gateway and industrial applications. It features enhanced low-power capabilities provide Increased functionality with more efficient operation, hardware security module protects ECUs against various attack scenarios, functional safety support simplifies compliance for automotive safety systems targeting ISO 26262 and higher-end ASIL levels and comprehensive development tools simplify and accelerate system design.
针脚数 256
时钟频率 160 MHz
RAM大小 768 KB
位数 32
模数转换数ADC 2
输入/输出数 178 Input
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 3.3 V
安装方式 Surface Mount
引脚数 256
封装 BGA-256
封装 BGA-256
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 嵌入式设计与开发, Embedded Design & Development
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
香港进出口证 NLR
