八路缓冲器/驱动器，具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
description
These octal buffers and line drivers are designed specifically to improve both the performance and
density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
•3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
•Package Options Include Plastic Small-Outline SOIC and Shrink Small-Outline SSOP Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs
贸泽:
Buffers & Line Drivers Octal Buffers and Line Drivers
电源电压DC 4.50V ~ 5.50V
输出接口数 8
通道数 8
传送延迟时间 8.00 ns
电压波节 5.00 V
输出电流驱动 -234 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

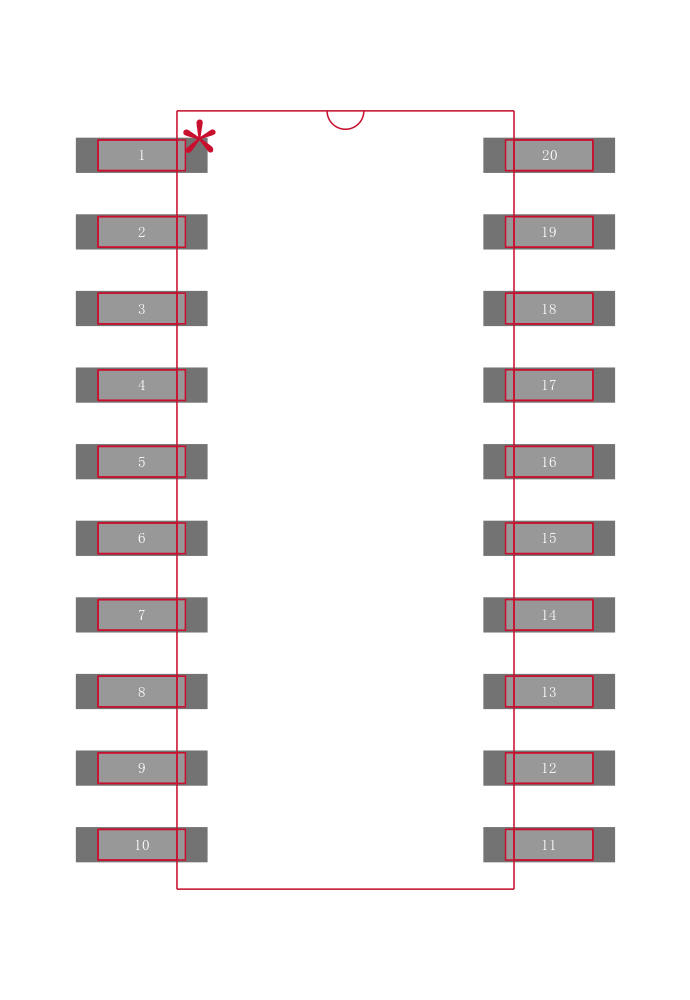

封装 SOP-20
长度 12.6 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
