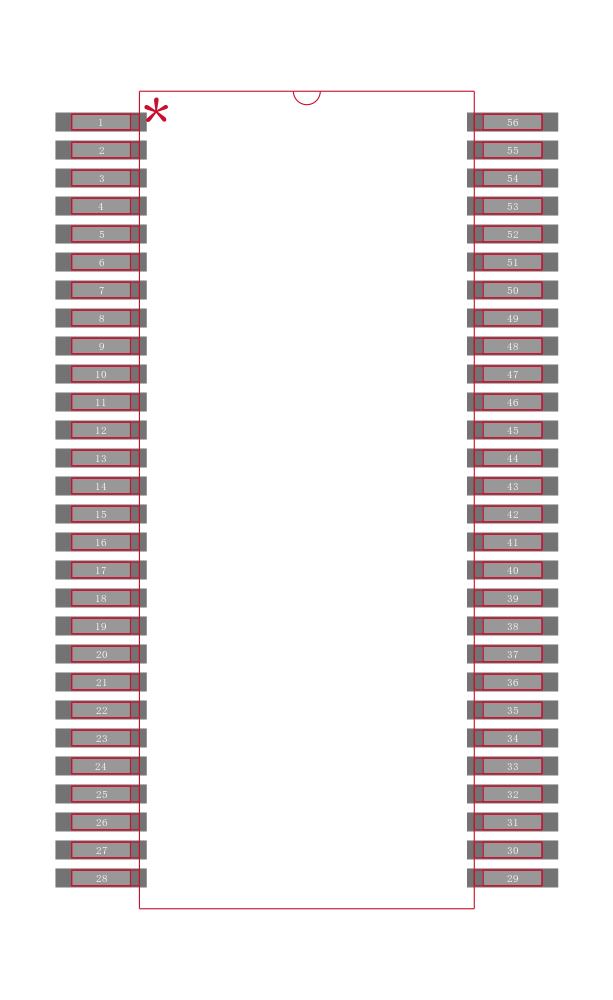

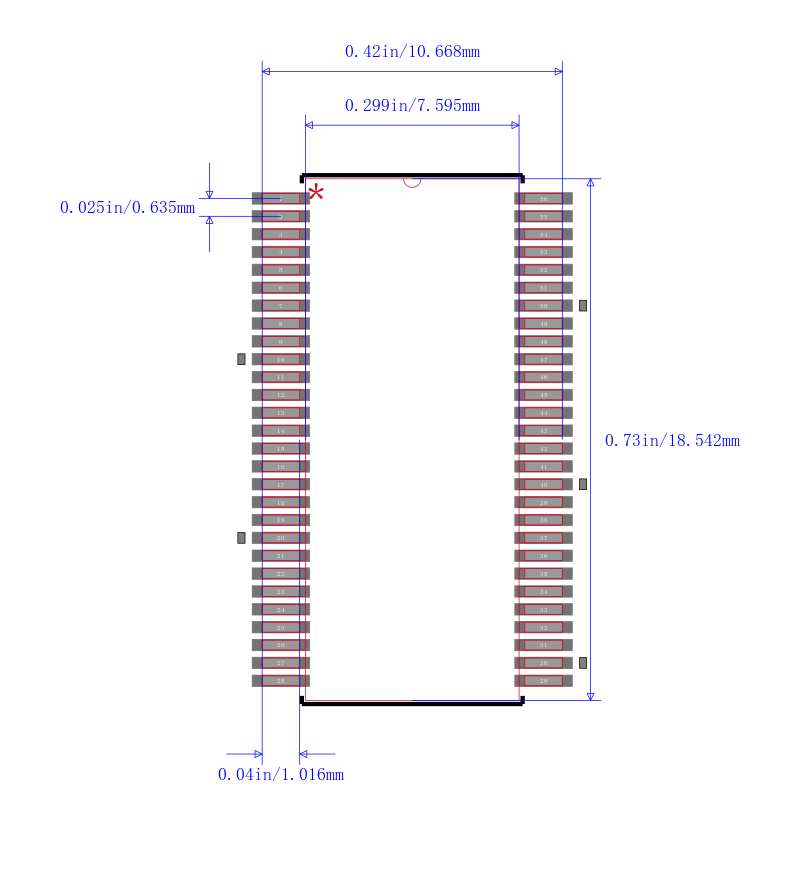

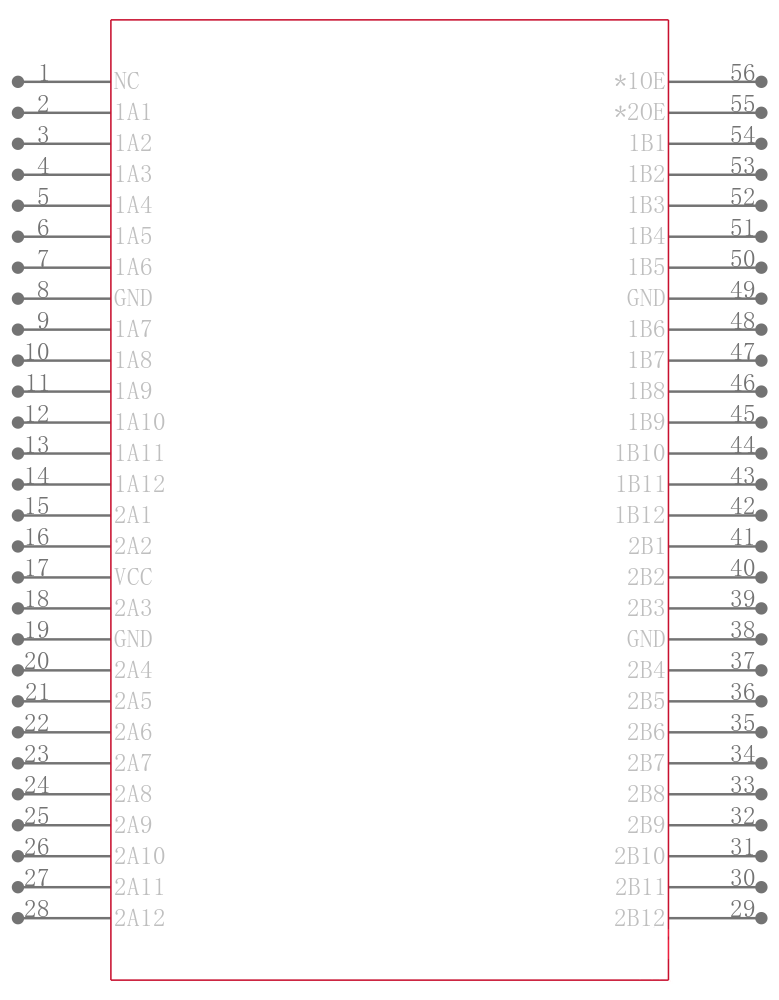

24位FET总线开关5 -V总线， 2 -V冲保护开关 24-BIT FET BUS SWITCH 5-V BUS SWITCH WITH 2-V UNDERSHOOT PROTECTION
description/ordering information
The SN74CBT16211C is a high-speed TTL-compatible FET bus switch with low ON-state resistance ron, allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT16211C provides protection for undershoot up to −2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.
• Member of the Texas Instruments Widebus™ Family
• Undershoot Protection for Off-Isolation on A and B Ports Up To −2 V
• Bidirectional Data Flow, With Near-Zero Propagation Delay
• Low ON-State Resistance ron Characteristics ron = 3 Ω Typical
• Low Input/Output Capacitance Minimizes Loading and Signal Distortion CioOFF = 5.5 pF Typical
• Data and Control Inputs Provide Undershoot Clamp Diodes
• Low Power Consumption
ICC = 3 µA Max
• VCC Operating Range From 4 V to 5.5 V
• Data I/Os Support 0 to 5-V Signaling Levels
0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V
• Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
− 2000-V Human-Body Model A114-B, Class II
− 1000-V Charged-Device Model C101
• Supports Both Digital and Analog Applications: PCI Interface, Memory Interleaving, Bus Isolation, Low-Distortion Signal Gating
