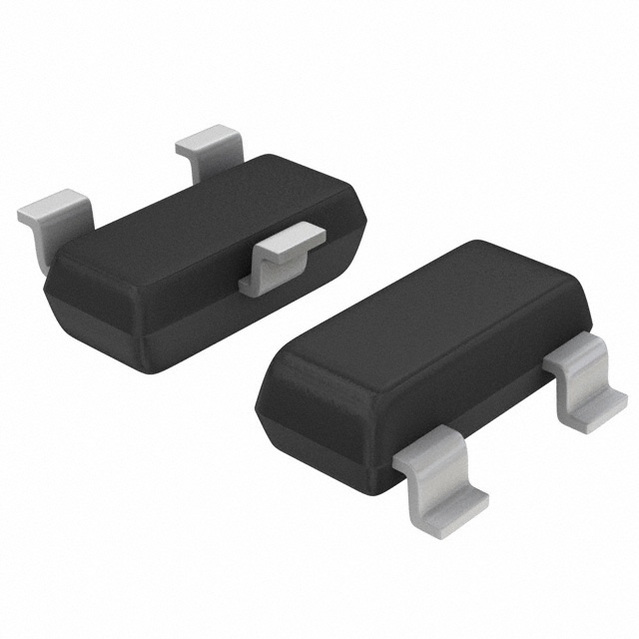

SN74AUP1G08DBVTE4

低功耗单路2输入正与门 LOW-POWER SINGLE 2-INPUT POSITIVE-AND GATE

DESCRIPON/ORDERING INFORMATION

The AUP family is TI"s premier solution to the industry"s low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC rangeof 0.8 V to 3.6 V, resulting in increased battery life.

FEATURES

• Available in the Texas Instruments NanoStar™ Package

• Low Static-Power Consumption: ICC = 0.9 mA Max

• Low Dynamic-Power Consumption: Cpd = 4.3 pF Typ at 3.3 V

• Low Input Capacitance: Ci = 1.5 pF Typ

• Low Noise: Overshoot and Undershoot <10% of VCC

• Ioff Supports Partial-Power-Down Mode Operation

• Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input Vhys = 250 mV Typ at 3.3 V

• Wide Operating VCC Range of 0.8 V to 3.6 V

• Optimized for 3.3-V Operation

• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation

• tpd = 4.3 ns Max at 3.3 V

• Suitable for Point-to-Point Applications

• Latch-Up Performance Exceeds 100 mA PerJESD 78, Class II

• ESD Performance Tested Per JESD 22

– 2000-V Human-Body ModelA114-B, Class II

– 1000-V Charged-Device Model C101
