SN74AS757DWRE4

八路缓冲器及其与集电极开路输出线路驱动器 OCTAL BUFFERS AND LINE DRIVERS WITH OPEN-COLLECTOR OUTPUTS

description

These octal buffers and line drivers are designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters by eliminating the need for 3-state overlap protection.

Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers

Eliminate the Need for 3-State Overlap Protection

pnp Inputs Reduce dc Loading

Open-Collector Versions of ′AS240A and ′AS241

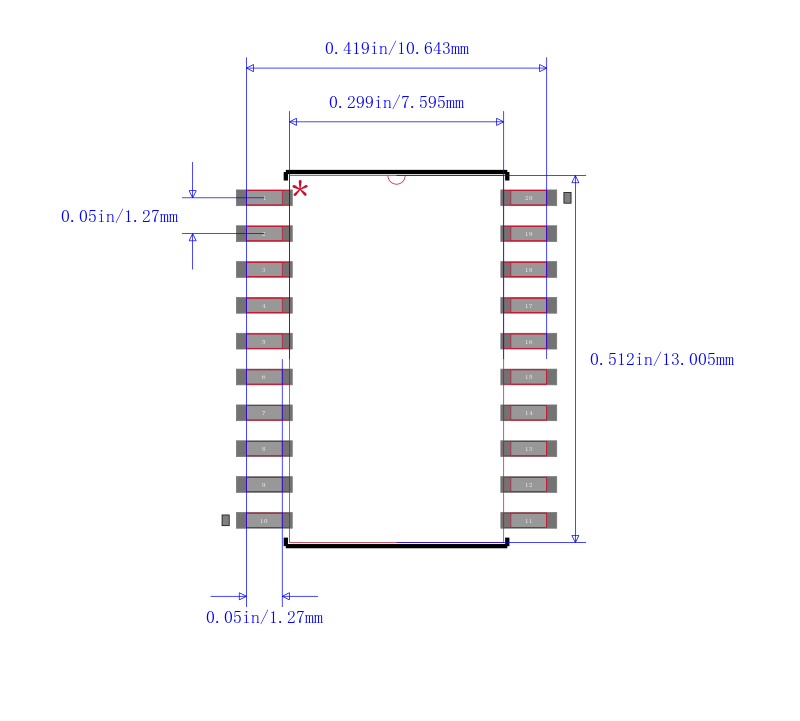

Package Options Include Plastic Small-Outline DW Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J 300-mil DIPs
