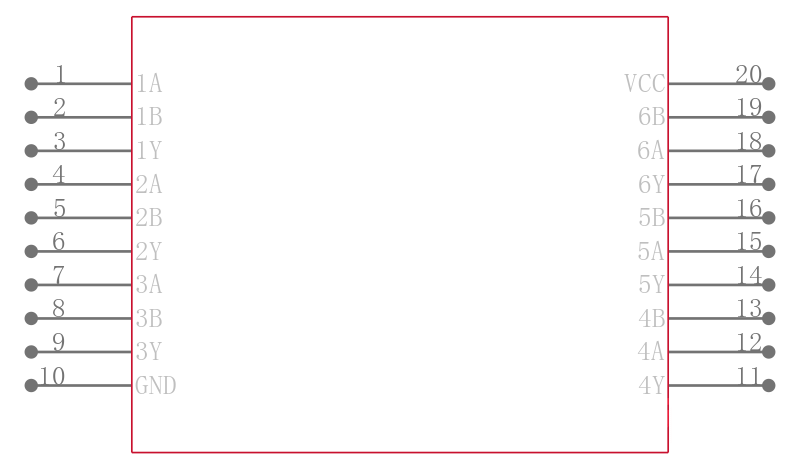

SN74AS804BDWE4

十六进制2输入与非驱动程序 HEX 2-INPUT NAND DRIVERS

description

These devices contain six independent 2-input NAND drivers. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.

The SN54ALS804A and SN54AS804B are characterized for operation over the full military temperature range of −55°C to 125°C. The SN74ALS804A and SN74AS804B are characterized for operation from 0°C to 70°C.

• High Capacitive-Drive Capability

• ′ALS804A Has Typical Delay Time of 4 ns

   CL = 50 pF and Typical Power Dissipation of 3.4 mW Per Gate

• ′AS804B Has Typical Delay Time of 2.6 ns

   CL = 50 pF and Typical Power Dissipation of Less Than 9 mW Per Gate

• Package Options Include Plastic

   Small-Outline DW Packages, Ceramic

   Chip Carriers FK, and Standard Plastic N

   and Ceramic J 300-mil DIPs
