Wide Band Medium Power, 0.39MHz Min, 1500MHz Max, 4.5MM X 2.4MM, ROHS COMPLIANT, SMT, SOT-89, 4Pin

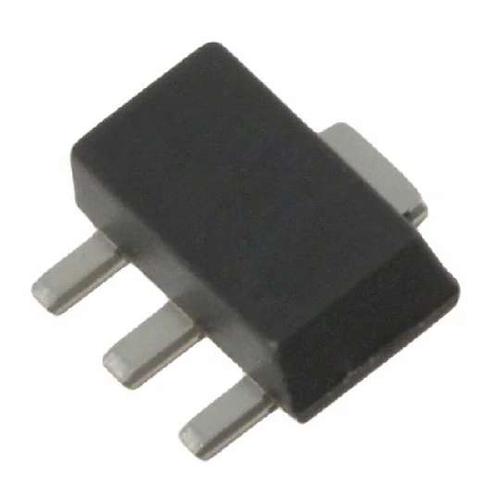

Skyworks is a high-performance, ultrawideband Power Amplifier PA driver with superior output power, low noise, linearity, and efficiency. The device provides a 1.6 dB Noise Figure NF and an output power at 1 dB compression of 25 dBm, making the SKY65045-70LF ideal for use in the driver stage of infrastructure transmit chains. The SKY65045-70LF is fabricated with Skyworks high reliability Heterojunction Bipolar Transistor HBT process. The device uses low-cost Surface Mount Technology SMT in the form of a 2.4 x 4.5 mm Small Outline Transistor SOT-89 package. The module can operate over the temperature range of -40 °C to +85 °C. A populated evaluation board is available upon request.
