SN54ALS00AFK

四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATES

description

These devices contain four independent 2-input positive-NAND gates. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.

The SN54ALS00A and SN54AS00 are characterized for operation over the full military temperature range of −55°C to 125°C. The SN74ALS00A and SN74AS00 are characterized for operation from 0°C to 70°C

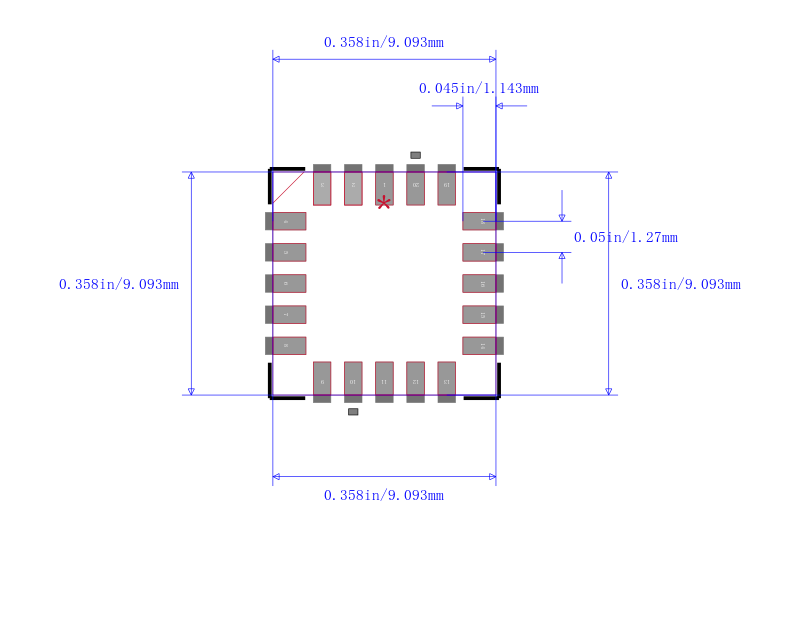

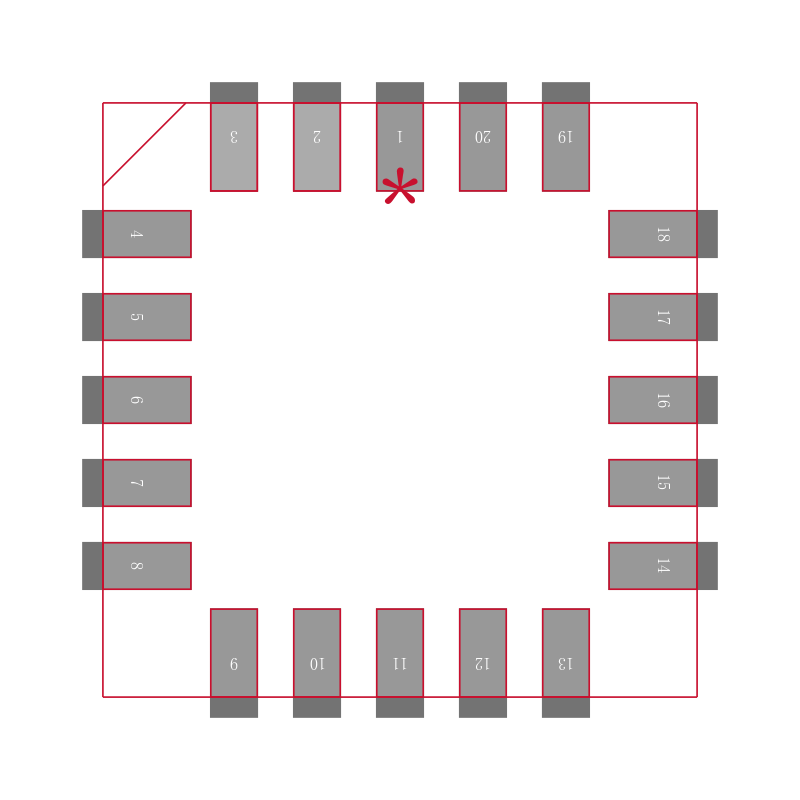

• Package Options Include Plastic Small-Outline D Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J 300-mil DIPs
