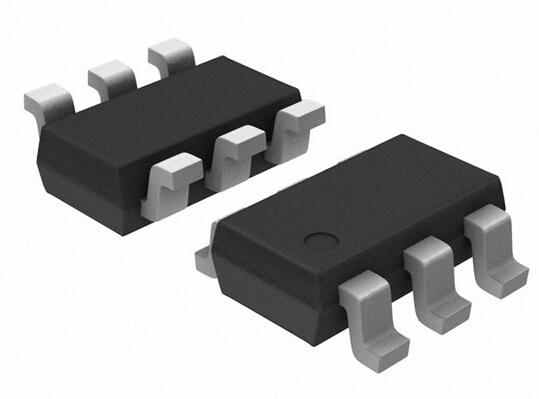

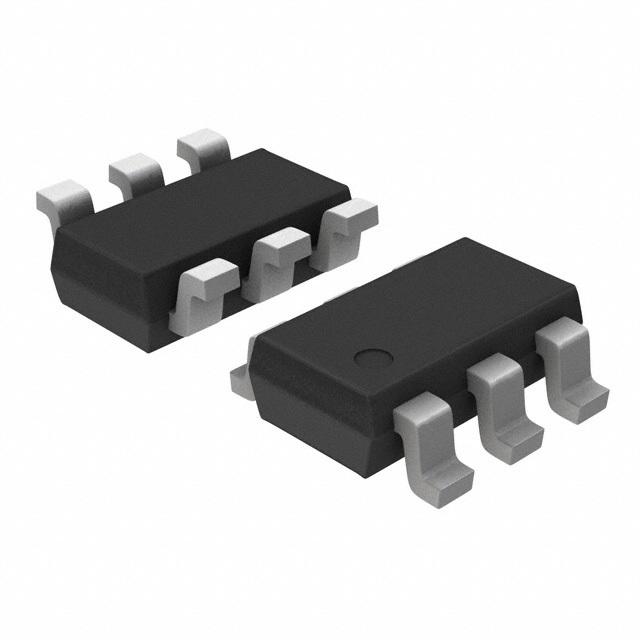

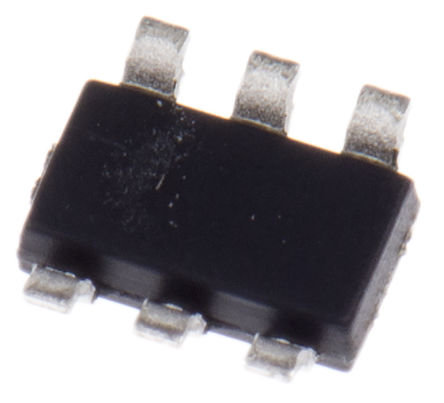

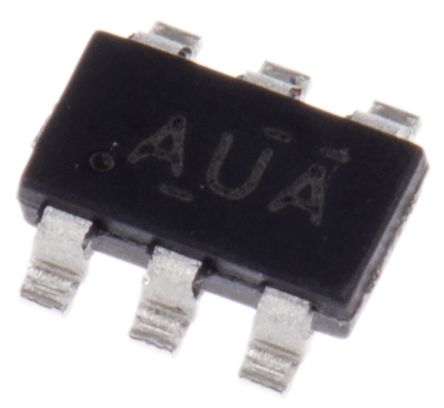

TEXAS INSTRUMENTS TPS27081ADDCR 电源负载开关, 电平转换, 高压侧, 高电平有效, 1路输出, 8V, SSOT-6
集成负载开关,Texas Instruments
集成负载开关 TPS229xx 系列是集成电子继电器,用于开启和关闭电源导轨。
### 负载开关 IC,Texas Instruments
欧时:
集成负载开关,Texas Instruments集成负载开关 TPS229xx 系列是集成电子继电器,用于开启和关闭电源导轨。### 负载开关 IC,Texas Instruments
立创商城:
TPS27081ADDCR
得捷:
IC PWR SWITCH 1:1 TSOT23-6
德州仪器TI:
8-V, 3-A, 44-mΩ load switch with adj. rise time
艾睿:
It&s;s easy to keep your circuit safe from high voltages with this simple high side TPS27081ADDCR power switch by Texas Instruments. This charge controller has single output. This charge controller has an input voltage of 1.2 to 8 V. It features 6.25 Ohm switch on resistance. This device has a maximum power dissipation of 1190 mW. Its maximum power dissipation is 1190 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This charge controller has an operating temperature range of -40 °C to 85 °C.
安富利:
High Side Load Switch 6-Pin SOT T/R
Chip1Stop:
Power Switch Hi Side 3A 6-Pin TSOT-23 T/R
Verical:
Power Switch Hi Side 1-OUT 3A 6.25Ohm 6-Pin TSOT-23 T/R
Newark:
Power Load Switch with Level Shift, High Side, Active High, 2 Outputs, 8V, TSOT-23-6
力源芯城:
3A,P沟道高端负载开关,具有电平位移和压摆率控制
DeviceMart:
IC LOAD SW HIGH SIDE 6SOT
Win Source:
IC LOAD SW HIGH SIDE 6SOT
输出接口数 1
输入电压DC 8.00 V
输出电流 3 A
通道数 1
针脚数 6
耗散功率 1.19 W
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1190 mW
输入电压 8 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
长度 3.02 mm
宽度 1.75 mm
高度 0.8 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
