TPS92510EVM-011概述

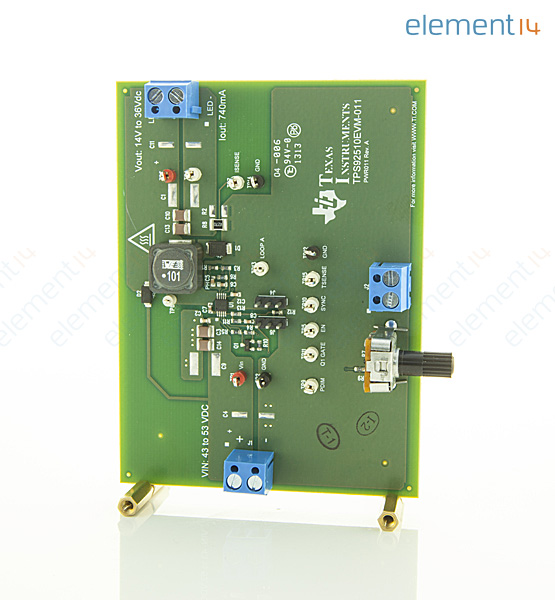

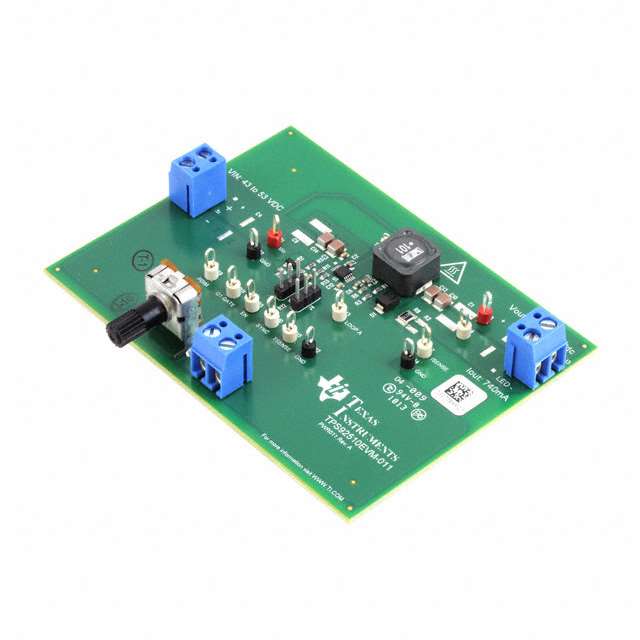

TEXAS INSTRUMENTS TPS92510EVM-011 评估模块, TPS92510EVM-011
The evaluation module helps designers evaluate the operation and performance of the TPS92510 DC/DC converter, a high brightness light emitting diode LED driver. The EVM is designed to operate from a nominal 48VDC ±10% input voltage source. This input voltage range is typical for input supplies derived from AC/DC sources The EVM provides an output current of 740mA with an output voltage sufficient to drive four to ten off board LEDs.
- .
- 3.5V to 60V input voltage range
- .
- Integrated 200mR high side MOSFET
- .
- 200mV internal voltage reference
- .
- 100KHz to 2.5MHz switching frequency range
- .
- 1.5A output current
- .
- LED thermal foldback
- .
- PWM capable
