双路低电压低功耗运算放大器 8-TSSOP -40 to 85
description
The TLV233x operational amplifiers are in a family of devices that has been specifically designed for use in low-voltage single-supply applications. Unlike the TLV2322 which is optimized for ultra-low power, the TLV233x is designed to provide a combination of low power and good acperformance. Each amplifier is fully functional down to a minimum supply voltage of 2 V, is fully characterized, tested, and specified at both 3-V and 5-V power supplies. The common-mode input-voltage range includes the negative rail and extends to within 1 V of the positive rail.
• Wide Range of Supply Voltages Over Specified Temperature Range:
TA = –40°C to 85°C . . . 2 V to 8 V
• Fully Characterized at 3 V and 5 V
• Single-Supply Operation
• Common-Mode Input-Voltage Range
Extends Below the Negative Rail and up to VDD –1 V at TA = 25°C
• Output Voltage Range Includes Negative Rail
• High Input Impedance . . . 1012 Ω Typ
• ESD-Protection Circuitry
• Designed-In Latch-Up Immunity
输出电流 ≤30 mA
供电电流 210 µA
电路数 2
通道数 2
耗散功率 525 mW
共模抑制比 65 dB
输入补偿漂移 1.70 µV/K
带宽 300 kHz
转换速率 430 mV/μs
增益频宽积 525 kHz
输入补偿电压 1.1 mV
输入偏置电流 .6 pA
工作温度Max 85 ℃
工作温度Min 40 ℃
增益带宽 525 kHz
耗散功率Max 525 mW
共模抑制比Min 65 dB
电源电压Max 8 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

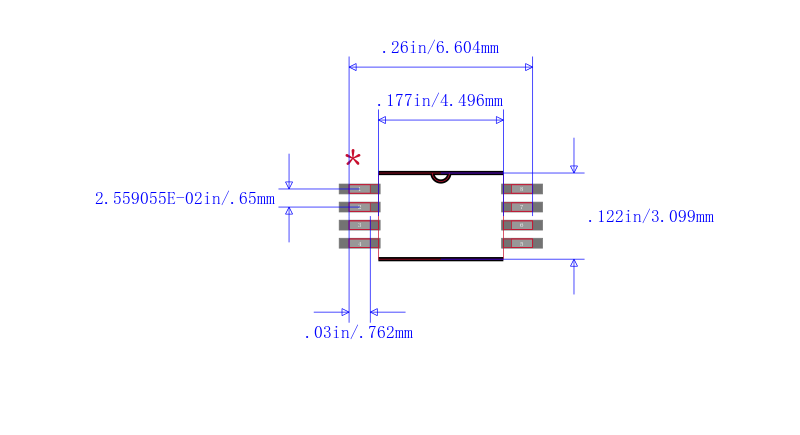

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV2332IPWR TI 德州仪器 | 当前型号 | 当前型号 |
TLV2332IPWLE 德州仪器 | 完全替代 | TLV2332IPWR和TLV2332IPWLE的区别 |
TLV2332IPW 德州仪器 | 类似代替 | TLV2332IPWR和TLV2332IPW的区别 |
TLV2332IPWG4 德州仪器 | 类似代替 | TLV2332IPWR和TLV2332IPWG4的区别 |
