LinCMOSE低电压低功耗运算放大器 LinCMOSE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS
description
The TLV232x operational amplifiers are in a family of devices that has been specifically designed for use in low-voltage single-supply applications. This amplifier is especially well suited to
ultra-low-power systems that require devices to consume the absolute minimum of supply
currents. Each amplifier is fully functional down to a minimum supply voltage of 2 V, is fully
characterized, tested, and specified at both 3-V and 5-V power supplies. The common-mode input
voltage range includes the negative rail and extends to within 1 V of the positive rail.
Wide Range of Supply Voltages Over Specified Temperature Range:
TA= –40°C to 85°C...2 V to 8 V
Fully Characterized at 3 V and 5 V
Single-Supply Operation
Common-Mode Input Voltage Range
Extends Below the Negative Rail and up to VDD –1 V at TA= 25°C
Output Voltage Range Includes Negative Rail
High Input Impedance...1012 Ω Typical
ESD-Protection Circuitry
Designed-In Latch-Up Immunity
供电电流 39 µA
电路数 4
通道数 4
耗散功率 700 mW
共模抑制比 65dB ~ 94dB
输入补偿漂移 1.10 µV/K
带宽 27.0 kHz
转换速率 30.0 mV/μs
增益频宽积 85 kHz
输入补偿电压 1.1 mV
输入偏置电流 0.6 pA
工作温度Max 85 ℃
工作温度Min 40 ℃
增益带宽 0.085 MHz
耗散功率Max 700 mW
共模抑制比Min 65 dB
电源电压Max 8 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

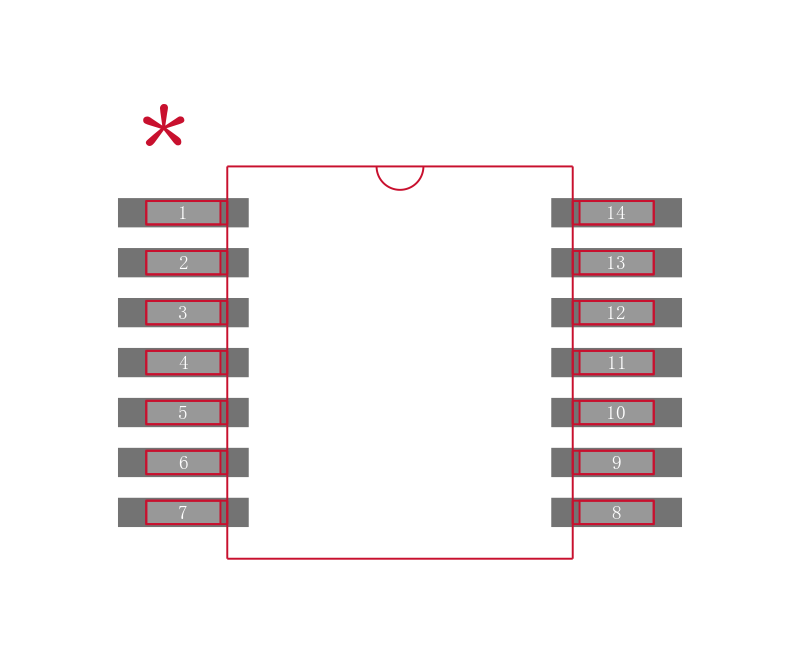

封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV2324IPWR TI 德州仪器 | 当前型号 | 当前型号 |
TLV2254AIPW 德州仪器 | 类似代替 | TLV2324IPWR和TLV2254AIPW的区别 |
TLV2254AIPWR 德州仪器 | 类似代替 | TLV2324IPWR和TLV2254AIPWR的区别 |
TLV2254AIPWRG4 德州仪器 | 类似代替 | TLV2324IPWR和TLV2254AIPWRG4的区别 |
