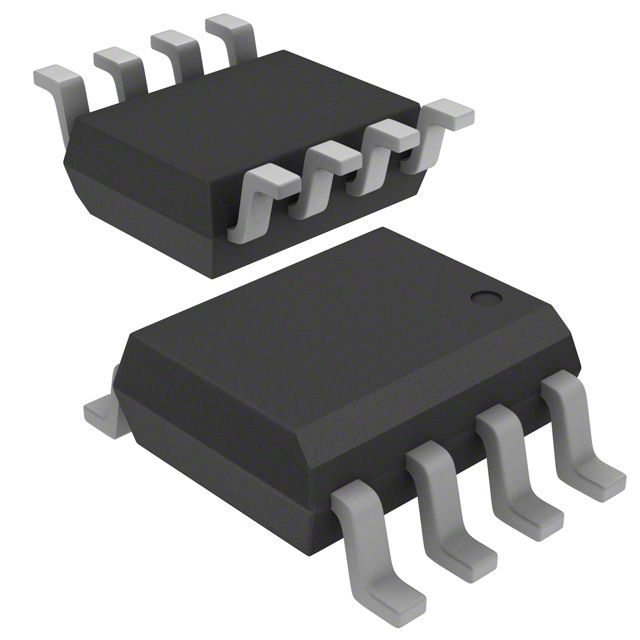

TMP36GS-REEL

低电压温度传感器 Low Voltage Temperature Sensors

GENERAL DESCRIPTION

The TMP35/TMP36/TMP37 are low voltage, precision centigrade temperature sensors. They provide a voltage output that is linearly proportional to the Celsius centigrade temperature. The TMP35/ TMP36/TMP37 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range.

FEATURES

Low voltage operation 2.7 V to 5.5 V

Calibrated directly in °C

10 mV/°C scale factor 20 mV/°C on TMP37

±2°C accuracy over temperature typ

±0.5°C linearity typ

Stable with large capacitive loads

Specified −40°C to +125°C, operation to +150°C

Less than 50 μA quiescent current

Shutdown current 0.5 μA max

Low self-heating

Qualified for automotive applications

APPLICATIONS

Environmental control systems

Thermal protection

Industrial process control

Fire alarms

Power system monitors

CPU thermal management
