TPSC107K006R0150

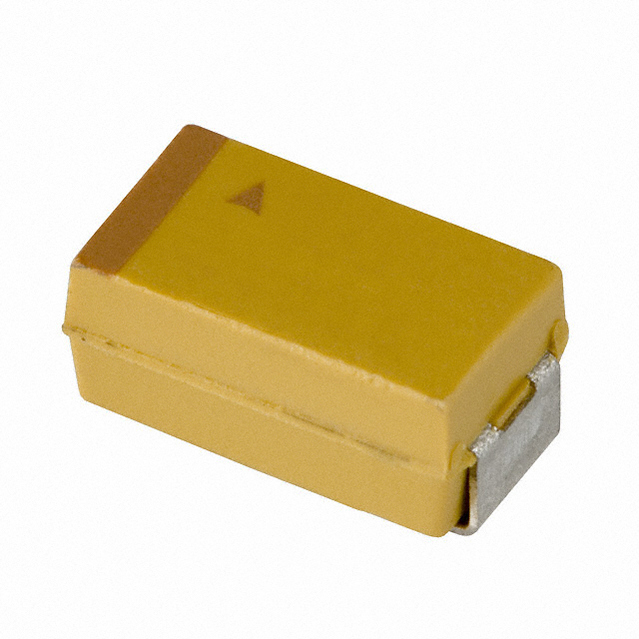

AVX  TPSC107K006R0150  表面贴装钽电容, TPS系列, 100 µF, ± 10%, 6.3 V, 2312 [6032 公制], C

钽器

欧时:

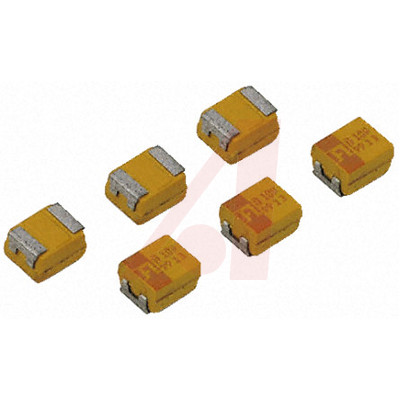

### TPS 系列 2.5 至 6.3V 直流AVX 的 TPS 系列低 ESR 贴片式电容器，设计主要用于电源应用。 TPS 系列电容器提供 14 种不同的外壳尺寸。低 ESR（等效串联电阻） 高波纹电流能力 低功率和热消散 尺寸 mm ---   | L | W | H | W1 | A 外壳代码 | +-0.2 | +-0.2 | +-0.2 | +-0.2 | +-0.3-0.2 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 E | 7.3 | 4.3 | 4.1 | 2.4 | 1.3 V | 7.3 | 6.1 | 3.45 | 3.1 | 1.4 W | 6 | 3.2 | 1.5 | 2.2 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### SMT 125°C

立创商城:
TPSC107K006R0150

艾睿:
If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this TPSC107K006R0150 solid tantalum capacitor from AVX. It can withstand a voltage of 6.3 VDC. Its leakage current is 6.3 μA. This solid capacitor has a maximum operating temperature of 125 °C. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep. It has a tolerance of 10%. Its capacitance value is 100uF.

Allied Electronics:
Capacitor; Tantalum; Cap 100 uF; Tol 10%; Vol-Rtg 6.3V; SMT; 6032; ESR 150 mOhms; CT

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

Chip1Stop:
Cap Tant Solid 100uF 6.3V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 0.15 Ohm 125A？A℃ T/R

TME:

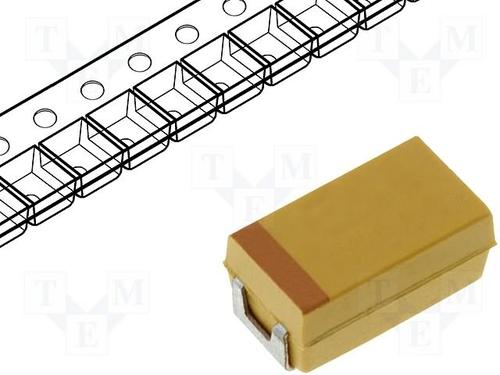

Capacitor: tantalum; low ESR; 100uF; 6.3VDC; Case: C; 2312; TPS; SMD

Verical:
Cap Tant Solid 100uF 6.3V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 0.15 Ohm 125C T/R

Newark:
# AVX  TPSC107K006R0150  Surface Mount Tantalum Capacitor, 100 µF, 6.3 V, TPS Series, ± 10%, 2312 [6032 Metric]

儒卓力:
**TC 100uF 6,3V 10%Case C 150mOhm **

Win Source:
CAP TANT 100UF 6.3V 10% 2312
