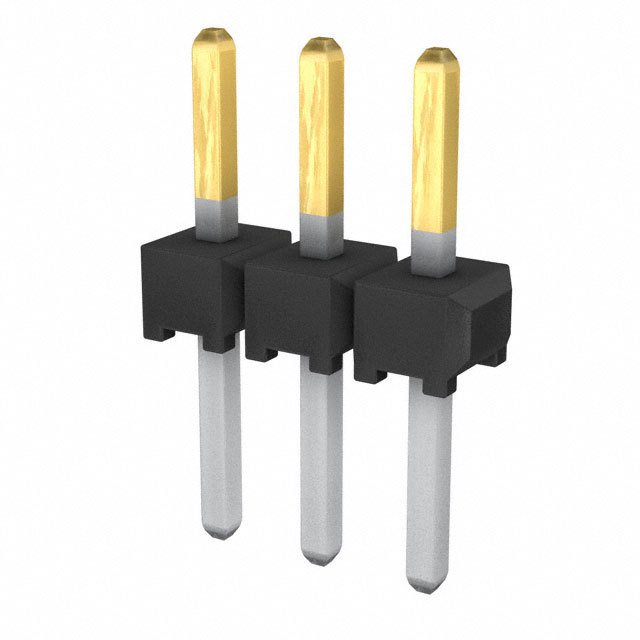

TMM-103-01-L-S

SAMTEC TMM-103-01-L-S Board-To-Board Connector, 2mm, 3Contacts, Header, TMM Series, Through Hole, 1Rows

针座 通孔 3 位置 0.079"（2.00mm）

得捷:
CONN HEADER VERT 3POS 2MM

欧时:
HEADER VERT 3POS 2MM TH

艾睿:
As an added safety precaution, the unshrouded TMM-103-01-L-S header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a header type gender. Its pitch is 2 mm. It has a straight body orientation. It has a maximum voltage rating of 500 VAC. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. TMM-103-01-L-S is housed in black liquid crystal polymer. This product is 6 mm long, 4.7 mm tall and 1.97 mm deep. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 3 POS 2mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 3 POS 2mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TMM-103-01-L-S  Board-To-Board Connector, 2 mm, 3 Contacts, Header, TMM Series, Through Hole, 1 Rows
