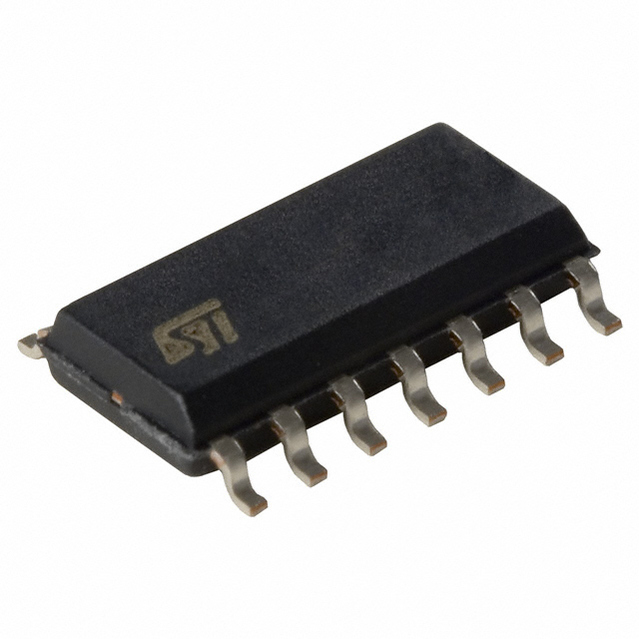

高性能CMOS四通道运算放大器 High performance CMOS quad operational amplifier
CMOS 放大器 4 电路 - 14-SO
得捷:
IC CMOS 4 CIRCUIT 14SO
贸泽:
Operational Amplifiers - Op Amps Quad Hi-Performance
艾睿:
Increase functionality to your control circuit with this general purpose amplifier TS274ACD OP amp from STMicroelectronics. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.5 V and maximum of ±8 V. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses one or two power supplies. It has 4 channels per chip. This device is made with CMOS technology.
输出电流 45mA @10V
供电电流 1 mA
电路数 4
通道数 4
共模抑制比 65 dB
转换速率 5.50 V/μs
增益频宽积 3.5 MHz
输入补偿电压 900 µV
输入偏置电流 1 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 3.5 MHz
共模抑制比Min 65 dB
电源电压Max 16 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.65 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS274ACD ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS274ACDT 意法半导体 | 完全替代 | TS274ACD和TS274ACDT的区别 |
