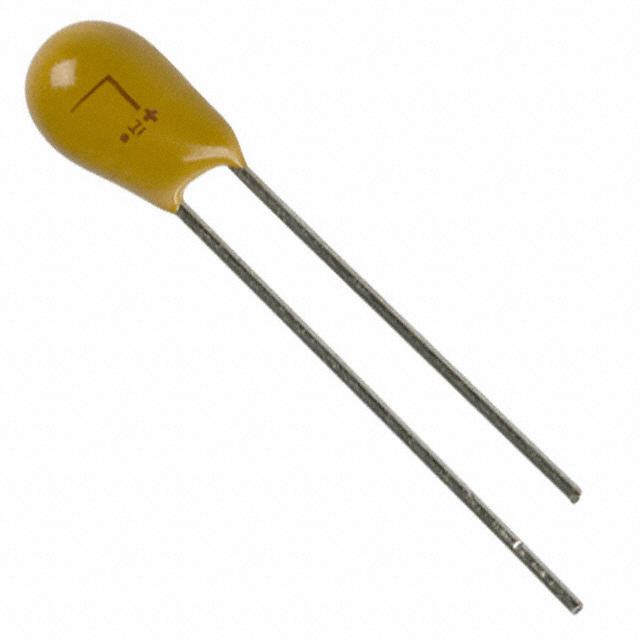

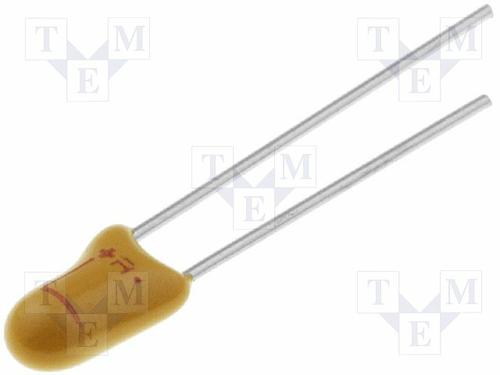

AVX TAP225K025SCS 钽电容, 2.2uF 10%容差 25V
A high capacitance per volume with a low footprint design is what you will get by using this tantalum solid capacitor from . Users like its straight wire form. It can withstand a voltage of 25 VDC. This solid capacitor has a maximum operating temperature of 125 °C. This part has a pitch of 2.5 mm. Its leakage current is 0.5 μA. This product is 7Max mm tall with a diameter of 4.5Max mm. Its capacitance value is 2.2uF. It has a tolerance of 10%. The TAP225K025SCS solid capacitor has a radial termination style.
额定电压DC 25.0 V
工作电压 25 VDC
电容 2.2 µF
等效串联电阻ESR 6 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Bulk
引脚间距 2.5 mm
高度 7 mm
直径 4.57 mm
封装 Bulk
引脚间距 2.5 mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP225K025SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP225K025GSB 艾维克斯 | 完全替代 | TAP225K025SCS和TAP225K025GSB的区别 |
MCDT2R2K25-1-RH Multicomp | 类似代替 | TAP225K025SCS和MCDT2R2K25-1-RH的区别 |
TAP225K035SCS 艾维克斯 | 功能相似 | TAP225K025SCS和TAP225K035SCS的区别 |
