汽车类可调节 LED 驱动器 8-SON -40 to 105
The TL4242-Q1 device is an integrated adjustable constant-current source, driving loads up to 500 mA. One can adjust the output current level through an external resistor. The device design is for supplying high-power LEDs for example, OSRAM Dragon LA W57B under the severe conditions of automotive applications, resulting in constant brightness and extended LED lifetime. The device comes in the DRJ WSON and KTT TO-263 package. Protection circuits prevent damage to the device in case of overload, short-circuit, reverse polarity, and overheat. The device provides the connected LEDs protection against reverse polarity as well as excess voltages up to 45 V.
The integrated PWM input of the TL4242-Q1 device permits LED brightness regulation by pulse-width modulation PWM. The high-input impedance of the PWM input allows operating the LED driver as a protected high-side switch.
输出接口数 1
输出电压 16 V
供电电流 22000 mA
耗散功率 1220 W
静态电流 12.0 mA
调节输出数 1
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 42V
电源电压Max 42 V
电源电压Min 4.5 V
安装方式 Surface Mount

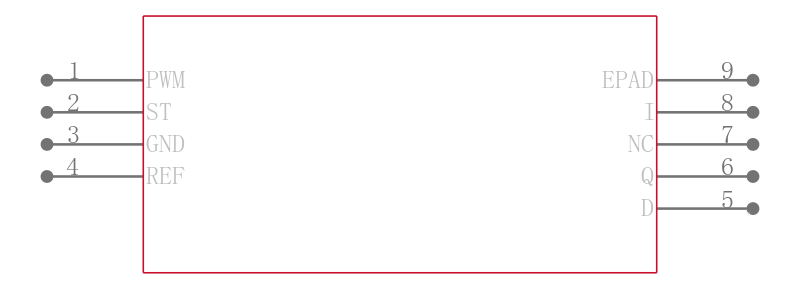

引脚数 8

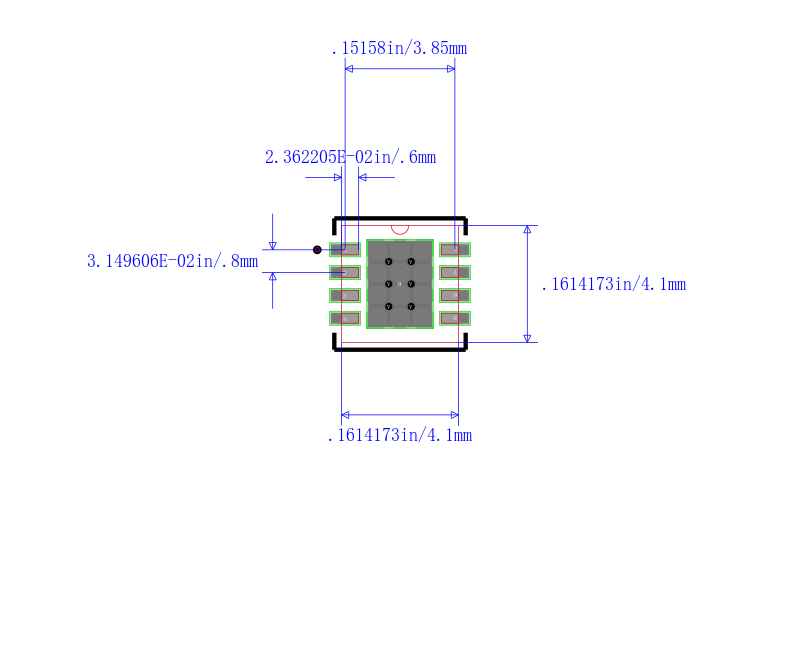

封装 WDFN-8
封装 WDFN-8
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
