TDA8035HN/C1,157

Smart Card Interface 3.3V 450mW Tray 32Pin HVQFN EP

Overview

The TDA8035 is the cost efficient successor of the established integrated contact smart card reader IC TDA8024. It offers a high level of security for the card by performing current limitation, short-circuit detection, ESD protection as well as supply supervision. The current consumption during the standby mode of the contact reader is very low as it operates in the 3 V supply domain. The TDA8035 is therefore the ideal component for a power efficient contact reader.

MoreLess

## Features

### Protection of the contact smart card

* Thermal and short-circuit protection on all card contacts

* VCC regulation:

* 5 V, 3 V, 1.8 V ± 5 % on 2 × 220 nF multilayer ceramic capacitors with low ESR

* current spikes of 40 nA/s VCC = 5 V and 3 V or 15 nA/s VCC = 1.8 V up to 20 MHz, with controlled rise and fall times, filtered overload detection is approximately 120 mA

* Automatic activation and deactivation sequences initiated by software or by hardware in the event of a short-circuit, card take-off, overheating, falling VREG VDDINTF,VDDP

* Enhanced card-side ElectroStatic Discharge ESD protection of > 8 kV

* Supply supervisor for killing spikes during power on and off:

* threshold internally fixed

* externally by a resistor bridge

### Easy integration into your contact reader

* SW compatible to TDA8024 and TDA8034

* 5 V, 3 V, 1.8 V smart card supply

* DC-to-DC converter for VCC generation separately powered from 2.7 V to 5.5 V supply VDDP and GNDP

* Very low power consumption in Deep Shutdown mode

* Three protected half-duplex bidirectional buffered I/O lines C4, C7 and C8

* External clock input up to 26 MHz

* Card clock generation up to 20 MHz using pins CLKDIV1 and CLKDIV2 with synchronous frequency changes of fXTAL, fXTAL/2, fXTAL/4, fXTAL/8

* Non-inverted control of pin RST using pin RSTIN

* Built-in debouncing on card presence contact

* Multiplexed status signal using pin OFFN

* Chip Select digital input for parallel operation of several TDA8035 ICs.

### Other

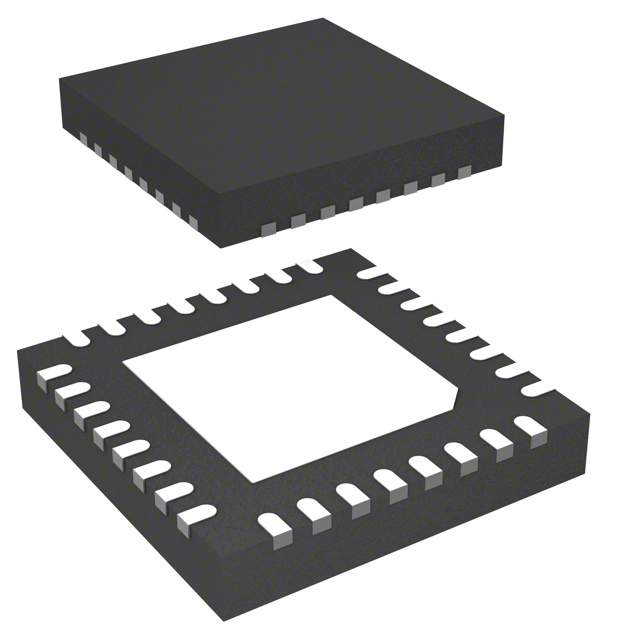

* HVQFN32 package

* Compliant with ISO 7816, NDS and EMV 4.3 * payment systems

_

.

for C2 version_

## Target Applications

* Pay TV

* Electronic payment

* Identification

* IC card readers for banking
