高性能CMOS四通道运算放大器 High performance CMOS quad operational amplifier
Description
The TS274 devices are low cost, quad operational amplifiers designed to operate with single or dual supplies. These operational amplifiers use the ST silicon gate CMOS process giving an excellent consumption-speed ratio. These series are ideally suited for low consumption applications.
Features
■ Output voltage can swing to ground
■ Excellent phase margin on capacitive loads
■ Gain bandwidth product: 3.5 MHz
■ Unity gain stable
■ Two input offset voltage selections
供电电流 1 mA
电路数 4
通道数 4
共模抑制比 65 dB
转换速率 5.50 V/μs
增益频宽积 3.5 MHz
输入补偿电压 1.1 mV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 16 V
电源电压Min 3 V
安装方式 Through Hole

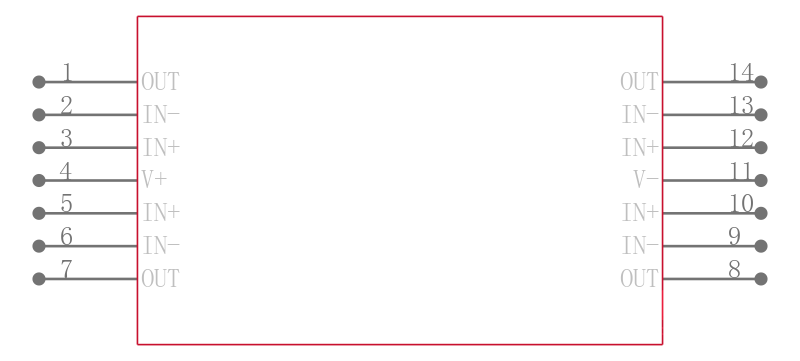

引脚数 14
封装 DIP-14
长度 20 mm
宽度 7.1 mm
高度 5.1 mm
封装 DIP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS274IN ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS274IPT 意法半导体 | 完全替代 | TS274IN和TS274IPT的区别 |
TS274CN 意法半导体 | 类似代替 | TS274IN和TS274CN的区别 |
