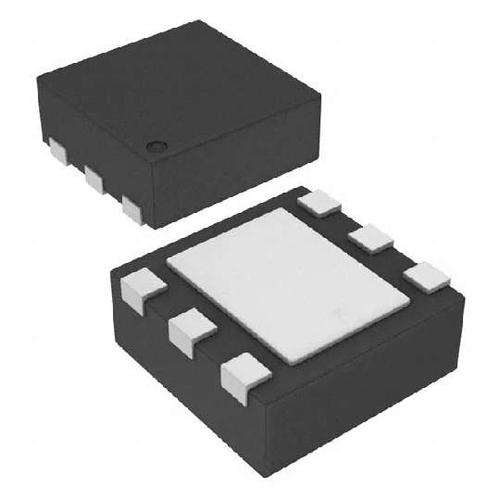

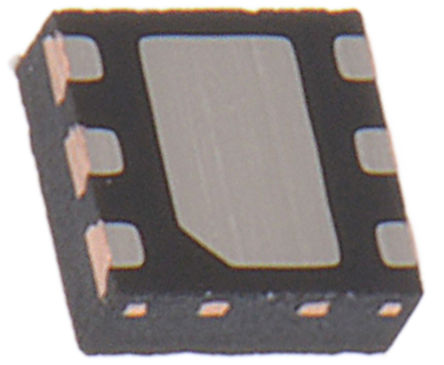

TEXAS INSTRUMENTS TPS61161ADRVT. 芯片, 白光二极管驱动器, 升压, SON-6
The is a white LED Driver with PWM brightness control. The boost converter runs at 600kHz fixed switching frequency to reduce output ripple, improve conversion efficiency and allows for the use of small external components. The default white LED current is set with the external sensor resistor Rset and the feedback voltage is regulated to 200mV, as shown in the typical application. During the operation, the LED current can be controlled by a pulse width modulation PWM signal applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In PWM dimming mode, the TPS61161A does not burst the LED current, therefore, it does not generate audible noises on the output capacitor. For maximum protection, the device features integrated open LED protection that disables the TPS61161A to prevent the output from exceeding the absolute maximum ratings during open LED conditions.
频率 600 kHz
输出接口数 1
输入电压DC 2.70V ~ 18.0V
输出电压 38 V
输出电流 700 mA
针脚数 6
耗散功率 1540 W
静态电流 1.50 mA
开关频率 600 kHz
拓扑结构 Boost
输入电压Max 18 V
输入电压Min 2.7 V
输出电压Max 38 V
输出电压Min 2.7 V
输出电流Max 840 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1540 mW
电源电压 2.7V ~ 18V
输入电压 2.7V ~ 18V
安装方式 Surface Mount
引脚数 6
封装 WSON-6
长度 2.1 mm
宽度 2.1 mm
高度 0.75 mm
封装 WSON-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, 背光, 便携式器材, 发光二极管照明, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
