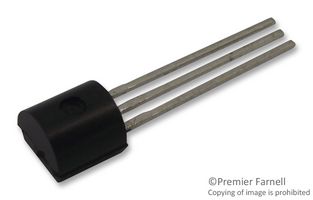

MICROCHIP TC54VN3002EZB 电压探测器, 低电平有效, 漏极开路复位, 0.7V-10V输入, TO-92-3
This voltage detector voltage monitor IC from Technology makes protecting components in your circuit easy. This device has a maximum power dissipation of 300 mW. Its maximum power dissipation is 300 mW. It has a typical reset threshold voltage of 3 V, with a minimum of 2.94 V and a maximum of 3.06 V. This device has a minimum operating supply voltage of 0.7 V and a maximum of 10 V. This voltage supervisor IC has an operating temperature range of -40 °C to 85 °C.
电源电压DC 700mV min
供电电流 1.10 µA
针脚数 3
耗散功率 300 mW
静态电流 1.10 µA
阈值电压 3 V
复位电压Min 2.94 V
复位电压Max 3.06 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压Max 10 V
电源电压Min 0.7 V
安装方式 Through Hole
引脚数 3
封装 TO-92-3
封装 TO-92-3
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC54VN3002EZB Microchip 微芯 | 当前型号 | 当前型号 |
TC54VC3002ECB713 微芯 | 类似代替 | TC54VN3002EZB和TC54VC3002ECB713的区别 |
TC54VN3002ECB713 微芯 | 类似代替 | TC54VN3002EZB和TC54VN3002ECB713的区别 |
TC54VC3002EMB713 微芯 | 功能相似 | TC54VN3002EZB和TC54VC3002EMB713的区别 |
