THAT1510S08-U

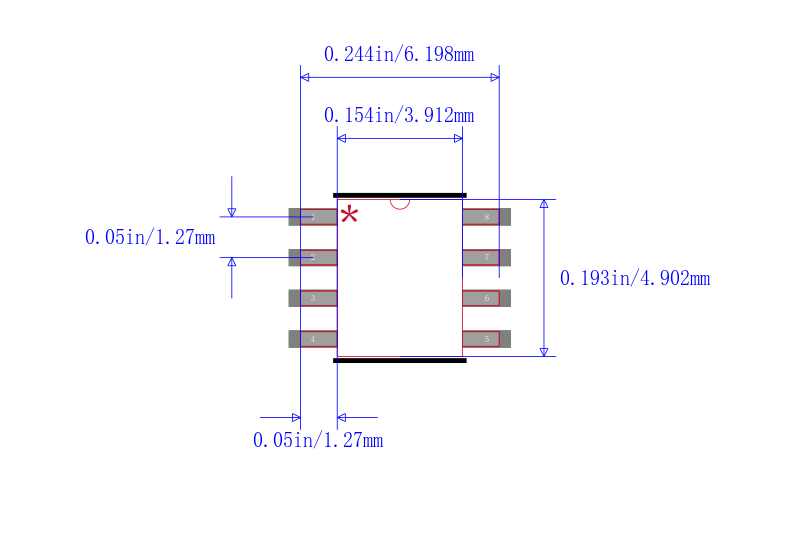

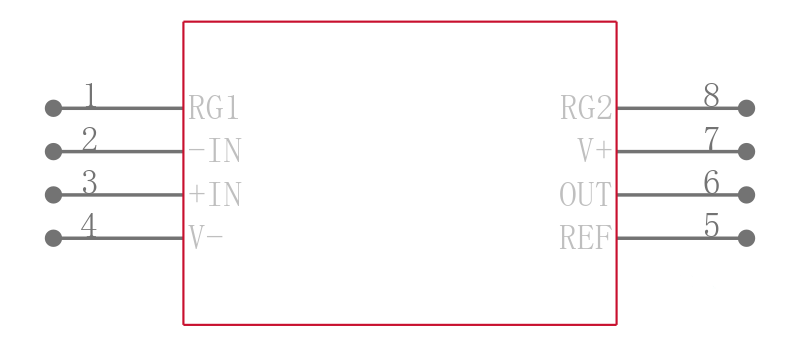

THAT CORPORATION  THAT1510S08-U  音频控制器, ± 5V 至 ± 20V, SOIC, 8 引脚, -40 °C

The 1510S08-U is a high performance Audio Pre-amplifier IC suitable for microphone preamp and bus summing applications. It improves on existing integrated microphone preamps by offering lower noise at low gains, better distortion characteristics, lower power consumption, higher slew rate and bandwidth and increased output voltage swing.

.

Excellent noise performance through entire gain range

.

Exceptionally low THD+N over full audio bandwidth

.

7mA Typical low power consumption

.

3MHz Typical at G=1000 wide bandwidth

.

28V/s at G=10 and CL=50pF High slew rate

.

±13V Typical on ±15V supplies wide output swing

.

Gain adjustable from 1 to >1000 with a single external resistor

.

Drop-in compatible with SSM-2017

Parts are fully protected against ESD on all critical pins and reliability is further enhanced by their reduced power requirements.
