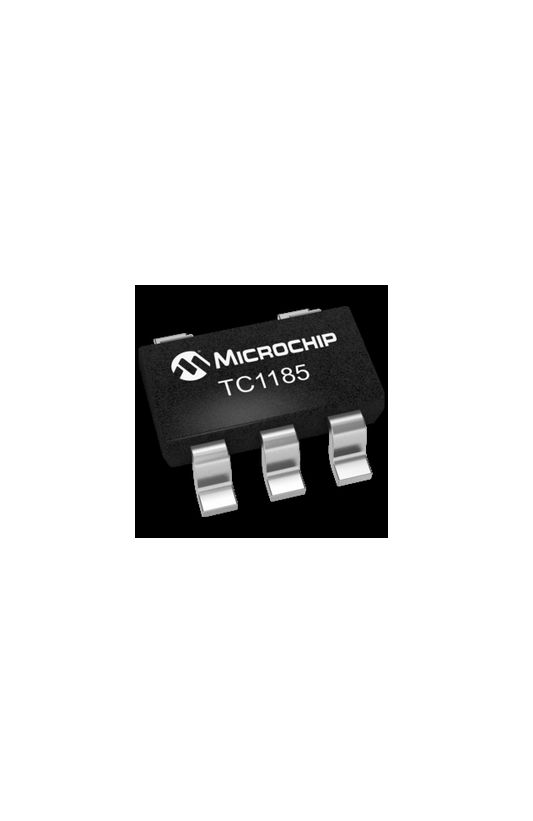

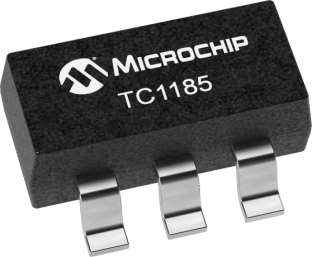

TC1185-2.5VCT713

MICROCHIP  TC1185-2.5VCT713  固定电压稳压器, LDO, 2.7V至6V, 270mV压差, 2.5V输出, 150mA输出, SOT-23-5

TC1185 低压降电压稳压器

得捷:
IC REG LINEAR 2.5V 150MA SOT23-5

欧时:
Microchip TC1185-2.5VCT713 LDO 稳压器, 2.5 V输出, 150mA最大输出, ±2.5%精确度, 5引脚 SOT-23封装

立创商城:
TC1185-2.5VCT713

贸泽:
LDO Voltage Regulators 150mA LDO w/Shtdn

e络盟:
固定电压稳压器, LDO, 2.7V至6V, 270mV压差, 2.5V输出, 150mA输出, SOT-23-5

艾睿:
Keep calm and stay stable by implementing this LDO TC1185-2.5VCT713 linear regulator developed by Microchip Technology. Its typical dropout voltage at current is 0.002@100uA|0.065@20mA|0.085@50mA|0.18@100mA|0.27@150mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. Use this part at voltages between 2.7 V and 6 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.5%Typ and line regulation of 0.05%Typ. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.12@50mA|0.25@100mA|0.4@150mA V.

Allied Electronics:

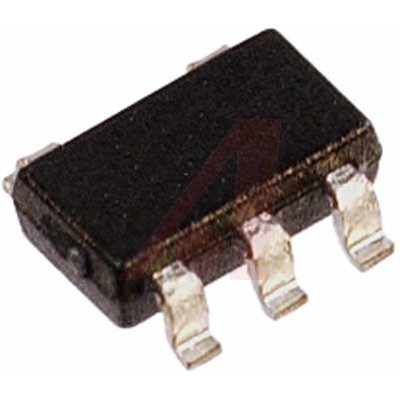

TC1185-2.5VCT713; LDOVoltage Regulator; 150mA; 2.5V +/-2.5%; 2.7to6Vin; 5-Pin SOT-23

安富利:
LDO Regulator Pos 2.5V 0.15A 5-Pin SOT-23 T/R

TME:

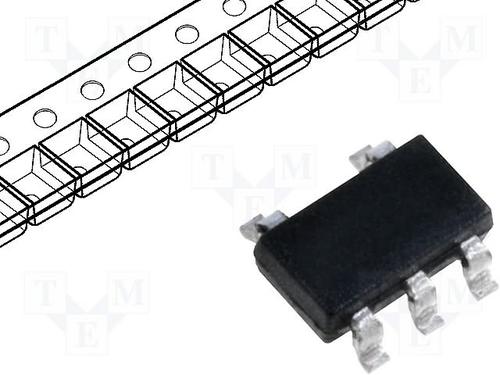

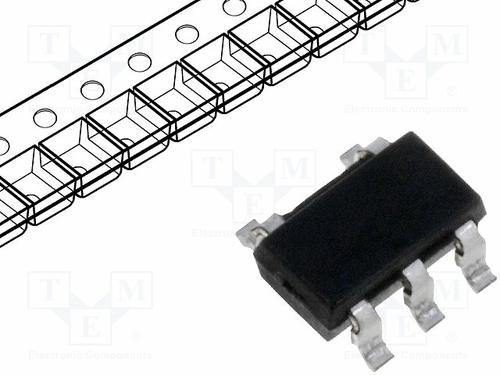

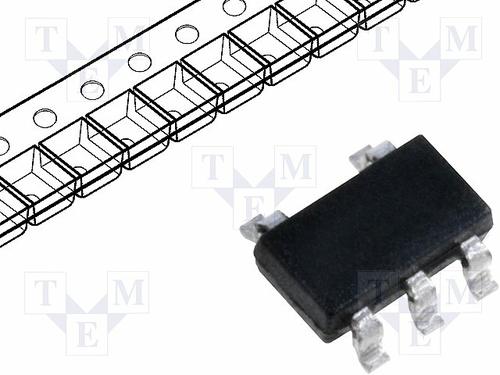

Voltage regulator; LDO, fixed; 2.5V; 0.15A; SOT23-5; SMD; -40÷125°C

Newark:
# MICROCHIP  TC1185-2.5VCT713  Fixed LDO Voltage Regulator, 2.7V to 6V, 270mV Dropout, 2.5Vout, 150mAout, SOT-23-5

DeviceMart:
IC REG LDO 2.5V .15A SOT23A-5

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 150mA SOT-23-5
