MICROCHIP TCM829ECT713 芯片, 电荷泵转换器, SOT23A-5
The is a CMOS switched capacitor charge-pump Voltage Converter inverts and doubles an input voltage which can range from 1.5 to 5.5V. Conversion efficiency is typically >95%. Switching frequency is 12kHz for the TCM828. External component requirement is only two capacitors 3.3 µF nominal for standard voltage inverter applications. With a few additional components, a positive doubler can also be built. All other circuitry including control, oscillator and power MOSFETs, are integrated on-chip.
- .
- Only two external capacitors required
- .
- 50µA Low quiescent current
- .
- >95% Voltage conversion efficiency
- .
- Up to 25mA output current
输出接口数 1
输出电压 -5.50 V min
输出电流 25 mA
供电电流 0.26 mA
针脚数 5
耗散功率 0.24 W
功耗 240 mW
静态电流 115 µA
输出功率 240 mW
开关频率 35 kHz
输入电压Max 5.5 V
输入电压Min 1.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 240 mW
输入电压 1.5V ~ 5.5V
安装方式 Surface Mount
引脚数 5

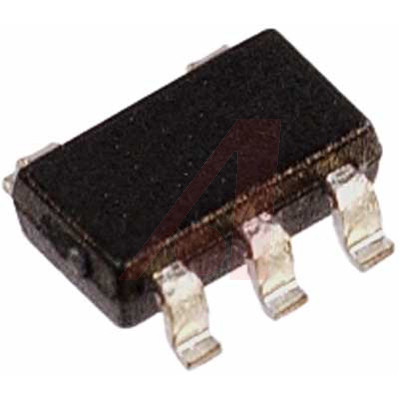

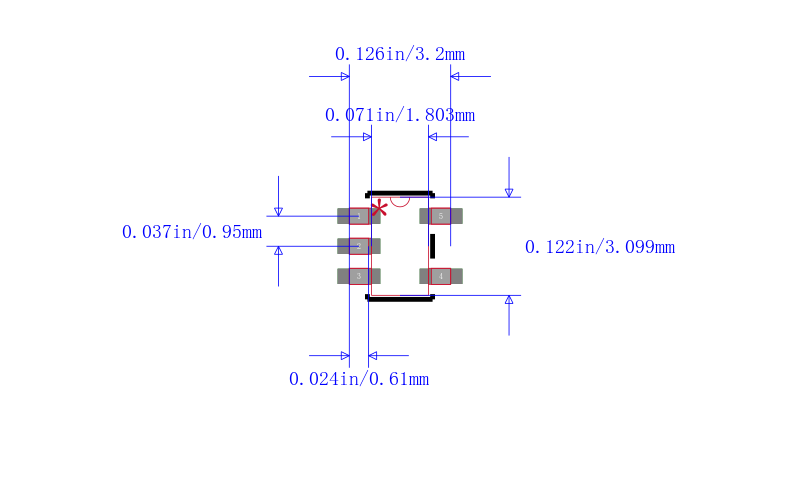

封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 成像, Imaging, Video & Vision, Consumer Electronics, 消费电子产品, Portable Devices, 通信与网络, Communications & Networking, 视频和目视, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TCM829ECT713 Microchip 微芯 | 当前型号 | 当前型号 |
TCM828ECT713 微芯 | 类似代替 | TCM829ECT713和TCM828ECT713的区别 |
MAX870EUK+T 美信 | 功能相似 | TCM829ECT713和MAX870EUK+T的区别 |
MAX1719EUT+T 美信 | 功能相似 | TCM829ECT713和MAX1719EUT+T的区别 |
