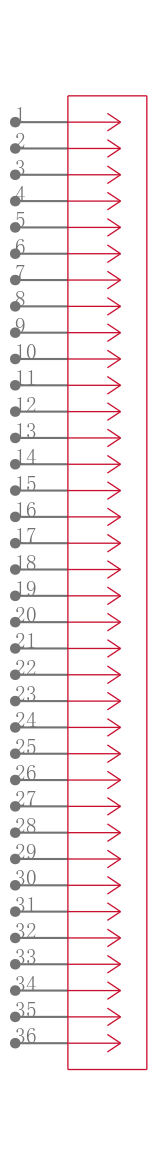

TSW-136-07-T-S

SAMTEC TSW-136-07-T-S Board-To-Board Connector, 2.54mm, 36Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 36 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 36POS 2.54MM

艾睿:
Mount this unshrouded TSW-136-07-T-S header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 36 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product is 91.44 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. TSW-136-07-T-S is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-136-07-T-S  Board-To-Board Connector, 2.54 mm, 36 Contacts, Header, TSW Series, Through Hole, 1 Rows
