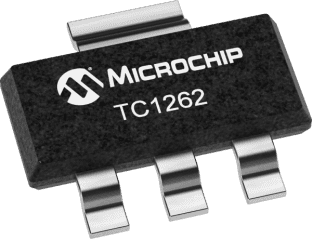

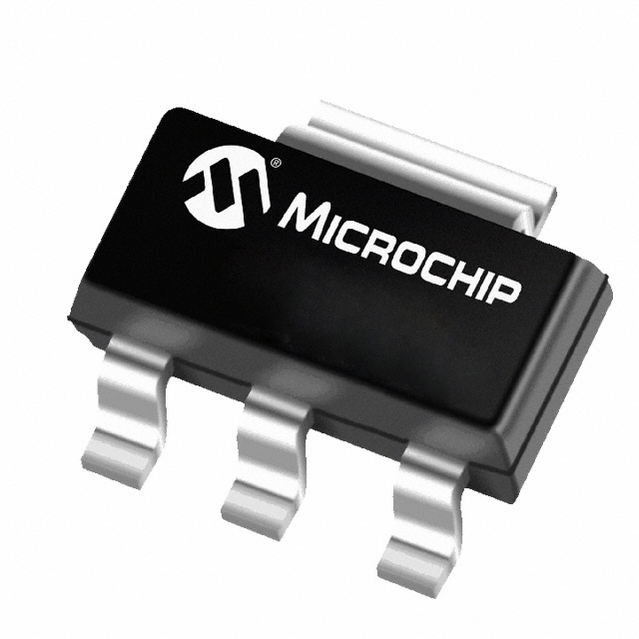

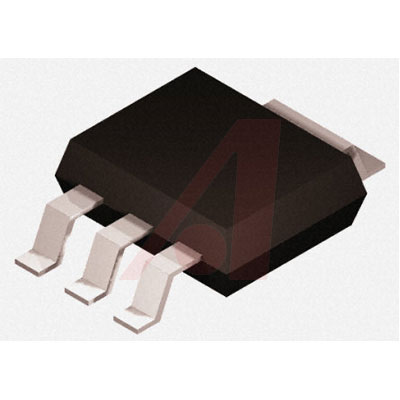

MICROCHIP TC1262-5.0VDB 固定电压稳压器, LDO, 2.7V至6V, 350mV压差, 5V输出, 500mA输出, SOT-223-3
The is a 5V fixed output high accuracy CMOS low-dropout LDO Linear Regulator. Designed specifically for battery-operated systems, the device CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80µA at full load. Key features include ultra-low noise, very low-dropout LDO voltage typically 350mV at full load and fast response to step changes in load. The device is stable with an output capacitor of only 1µF and has a maximum output current of 500mA.
- .
- ±0.5% High output voltage accuracy typical
- .
- Over current and over temperature protection
输出接口数 1
输出电压 5 V
输出电流 500 mA
针脚数 3
静态电流 0.08 mA
跌落电压 350 mV
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3

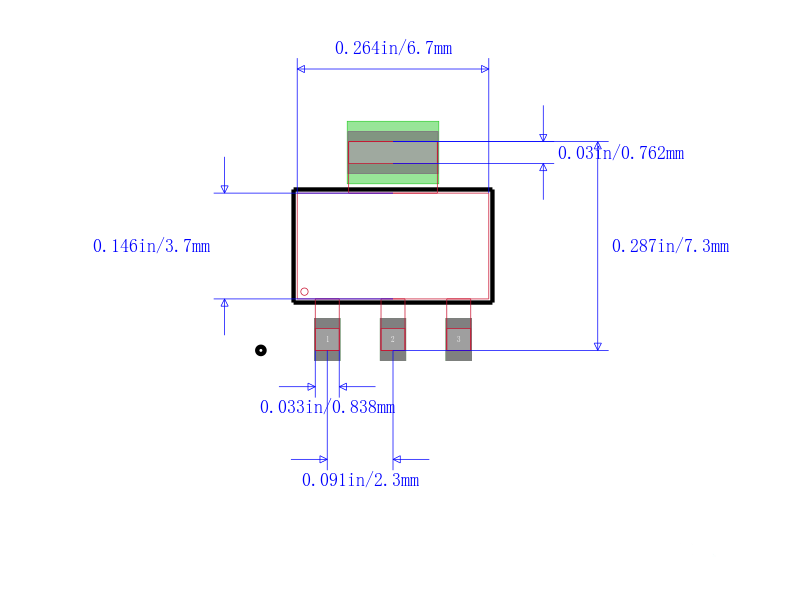

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
制造应用 车用, 医用, Portable Devices, Sensing & Instrumentation, 电源管理, Computers & Computer Peripherals, Power Management, 传感与仪器, 消费电子产品, Consumer Electronics, Medical, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC1262-5.0VDB Microchip 微芯 | 当前型号 | 当前型号 |
MIC5209-5.0YS 微芯 | 类似代替 | TC1262-5.0VDB和MIC5209-5.0YS的区别 |
TC1262-5.0VDBTR 微芯 | 类似代替 | TC1262-5.0VDB和TC1262-5.0VDBTR的区别 |
MIC5209-5.0BS 微芯 | 类似代替 | TC1262-5.0VDB和MIC5209-5.0BS的区别 |
