MICROCHIP TCM809MVNB713 芯片, 电压探测器, 12UA, 5.5V, 3-SOT-23B
MIC809 微处理器监控电路
### 监控和重置电路 -
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-3
立创商城:
TCM809MVNB713
欧时:
Microchip TCM809MVNB713 电压监控器, 4.25 至 4.5 V监控电压, 多种输出驱动, 3引脚 SOT-23B封装
贸泽:
Supervisory Circuits Microprocessor 4.38V
e络盟:
芯片, 电压探测器, 12UA, 5.5V, 3-SOT-23B
艾睿:
In the event that a core processor fails in your circuit, the TCM809MVNB713 processor from Microchip Technology supervisory ensures that there is a backup to take over. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a typical reset threshold voltage of 4.38 V, with a minimum of 4.31 V and a maximum of 4.45 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
Microchip TCM809MVNB713, Voltage Supervisor 4.25 - 4.5 V, 3-Pin SOT-23B
安富利:
Processor Supervisor 4.38V 2.5V/3V/3.3V/5V 3-Pin SOT-23B T/R
Chip1Stop:
Processor Supervisor 4.38V 2.5V/3V/3.3V/5V 3-Pin SOT-23B T/R
Newark:
# MICROCHIP TCM809MVNB713 Voltage Detector, 1V-5.5V supply, 4.38V Threshold, 320 ms Delay, Active-Low, Push-Pull, SOT-23B-3
儒卓力:
**SUPERVISOR 4,38V LOW SOT23-3L **
DeviceMart:
IC RESET MONITOR 4.38V SOT23B-3
Win Source:
Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3
电源电压DC 1.00V min
输出电流 20 mA
供电电流 12.0 µA
耗散功率 320 mW
静态电流 12.0 µA
阈值电压 4.38 V
复位电压Min 4.31 V
复位电压Max 4.45 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压 5.5 V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

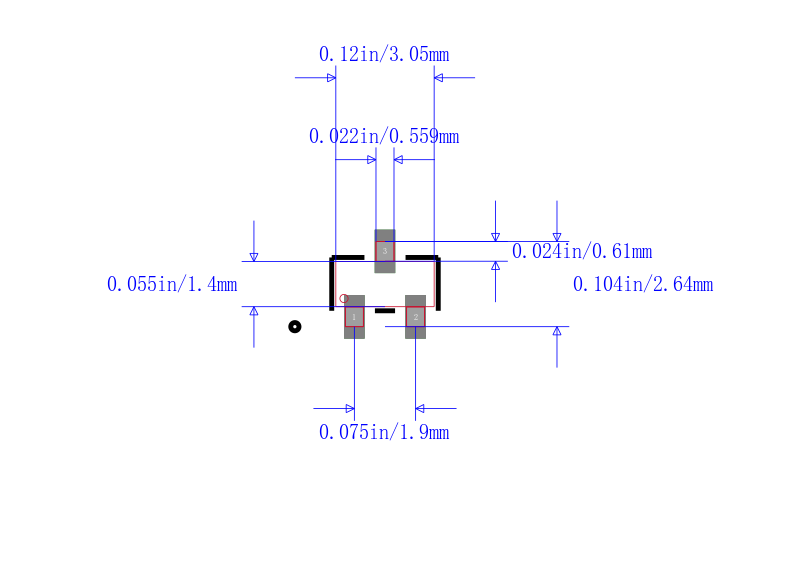

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TCM809MVNB713 Microchip 微芯 | 当前型号 | 当前型号 |
TCM809MENB713 微芯 | 类似代替 | TCM809MVNB713和TCM809MENB713的区别 |
FM809MS3X 飞兆/仙童 | 功能相似 | TCM809MVNB713和FM809MS3X的区别 |
FM810MS3X 飞兆/仙童 | 功能相似 | TCM809MVNB713和FM810MS3X的区别 |
