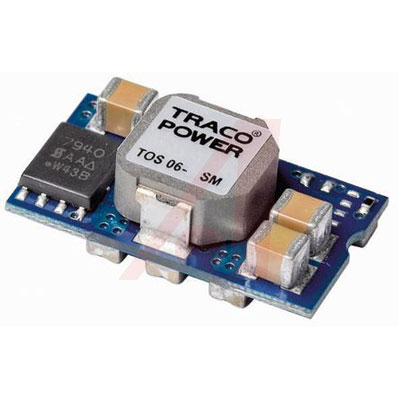

TRACOPOWER TOS 06-05SM 非隔离负载点直流/直流转换器, 低型, 可调, DOSA, 19.8 W, 750 mV, 3.3 V, 6 A
The is a 19.8W surface-mount non-isolated DC/DC Converter with very high efficiency that can supply up to 30A of output current. This module provides precisely regulated output voltages which can be set via an external resistor to a value from 0.75 to 5.5VDC. This converter work over a wide input voltage range of 2.4 to 5.5 or 8.3 to 14.0VDC. Further features include remote ON/OFF, under-voltage lockout, over-temperature and over current protection. This product has an open-frame construction with very small footprint.
- .
- Small size, low profile, high performance
- .
- Cost-efficient open frame design
- .
- Wide input voltage range
- .
- Delivers up to 30A with minimal derating
- .
- Fast transient response
- .
- Remote ON/OFF control
- .
- 96% Ultra high efficiency
电源电压DC 5.00 V
额定功率 19.8 W
输出接口数 1
输入电压DC 2.40V ~ 5.50V
输出电压 0.75V ~ 3.3V
输出电流 6 A
输入电压DC Max 5.5 V
输入电压DC Min 2.4 v
输出电压Max 3.3 V
输出电压Min 750 mV
输出电流Max 6 A
输出功率Max 19.8 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 9V
安装方式 Surface Mount
封装 SMT
长度 0.8 in
宽度 11.4 mm
高度 5.97 mm
封装 SMT
重量 2.80 g
工作温度 -40℃ ~ 85℃
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
