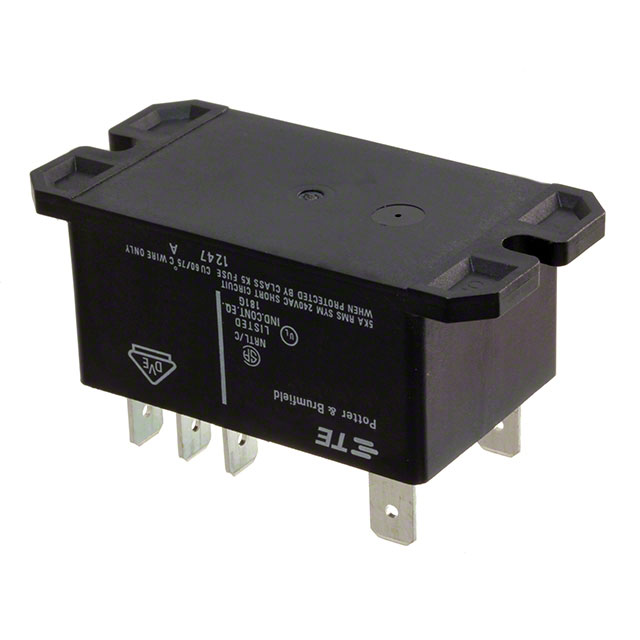

TE CONNECTIVITY T92P11D24-12 通用继电器, T92系列, 功率, 无锁定, DPDT, 12 VDC, 30 A
The T92 series 2-pole 30A PCB or panel-mount General Purpose High Power Relay designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA. It offers 40A, 2-form-A NO and 2-form-C CO switching capability. It meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contact and also meets requirements of UL 508 and UL 873 spacing - 8mm through air and 9.5mm over surface.
- .
- Meets requirements of UL class-F construction
- .
- New screw terminal version
- .
- UL approved for 600VAC switching 1.5HP
绝缘电阻 1.00 GΩ
触点类型 DPDT
线圈电压 12 VDC
线圈电流 139.5 mA
线圈电阻 86 Ω
线圈功率AC 4.00 W
安装方式 Panel
封装 -
长度 68.58 mm
宽度 34.54 mm
高度 37.97 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray, Box
制造应用 HVAC, Industrial, 电源管理, 工业, Commercial, 商业, Power Management
RoHS标准 RoHS Compliant
含铅标准
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T92P11D24-12 TE Connectivity 泰科 | 当前型号 | 当前型号 |
T92P11D22-12 泰科 | 类似代替 | T92P11D24-12和T92P11D22-12的区别 |
