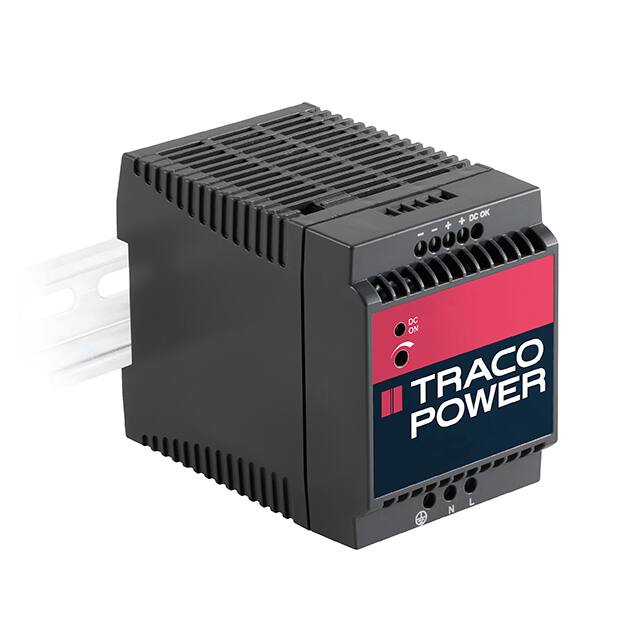

TRACOPOWER TPC 120-124 交流/直流电源, DIN轨, 工业用, 固定/可调, 85 V, 264 V, 120 W, 24 V, 5 A
The is a 24V/120W DIN-rail 1-output Power Supply with an excellent performance ratio. It consumes sparse standby power and operate with high efficiency to comply with the requirements of the European Ecodesign directive. TPC-series is a family of lightweight and are designed for class-I operation in industrial and residential environments. With the optional active current sharing redundancy module, these power supplies provide a very reliable true redundant DC supply. Output voltage is adjustable.
输出接口数 1
输出电压 24 V
输出电流 5 A
输出功率 120 W
输入电压DC Max 375 V
输入电压DC Min 90 V
输入电压AC Max 264 v
输入电压AC Min 85 v
输出电压Max 28.8 V
输出电流Max 5 A
输出功率Max 120 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 85VAC ~ 264VAC
安装方式 DIN Rail
引脚数 8
产品生命周期 Active
制造应用 Industrial, 电源管理, 工业, Power Management, 工业,ITE(商用)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPC 120-124 Traco Electronic | 当前型号 | 当前型号 |
TCL 120-124 Traco Electronic | 类似代替 | TPC 120-124和TCL 120-124的区别 |
SVL 5-24-100 SolaHD | 类似代替 | TPC 120-124和SVL 5-24-100的区别 |
SDN 5-24-100C SolaHD | 类似代替 | TPC 120-124和SDN 5-24-100C的区别 |
