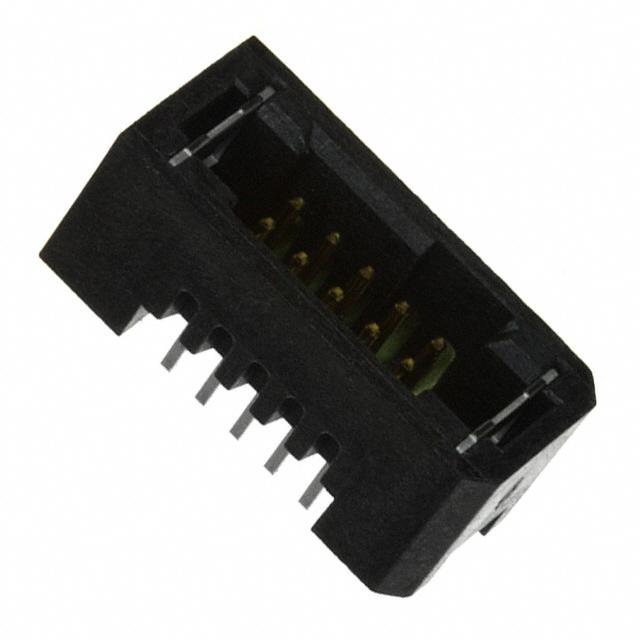

TFM-105-01-S-D-WT

SAMTEC  TFM-105-01-S-D-WT  板至板连接, TFM系列, 10 触点, 针座, 1.27 mm, 通孔安装, 2 排

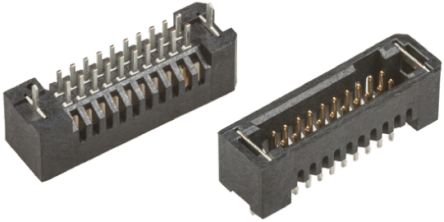

Through Hole Mount Headers - TFM Series

These TFM Series Headers from are Through Hole Terminal Strips with a 1.27 mm pitch.

Current rating 2A

Operating temperature -55 to 125°C

.

*L**-D: 0.38 μm Gold plating on contact area and Matte Tin on tails

.

*S**-D-WT: 0.76 μm Gold plating on contact area and Matte Tin on tails

.

*WT**: with Weld Tabs

.

*RA**: for Right Angle / Horizontal orientation

### 注

For mating Board to Board Sockets see SFM Series, stock number 507-7308 typical

For mating IDC cable assemblies see SFSD Series, stock number 767-9221 typical
