单细胞到3.0 -V / 3.3 V , 20 mA的双输出,高效率电荷泵 SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT, HIGH-EFFICIENCY CHARGE PUMP
充电泵 开关稳压器 IC 正 固定 2Vin,3V 2 输出 40mA,20mA 10-TFSOP,10-MSOP(0.118",3.00mm 宽)
得捷:
IC REG CHRG PUMP 2VIN/3V 10VSSOP
立创商城:
TPS60303DGSR
德州仪器TI:
Single cell to 3.0V, 20mA dual output, high efficiency charge pump with Push-Pull power-good output
艾睿:
Ideal for DC circuits, this TPS60303DGSR charge pump voltage doubler from Texas Instruments, will change voltages for operations. With an output that has a voltage of 1.8 to 3.6|3 V, this is power management at its best. Its output produces a current of 40Max|20Max mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 0.9 V and a maximum of 1.8 V. This inverting charge pump has an operating temperature range of -40 °C to 85 °C.
安富利:
Charge Pump STPUP 1.8V to 3.6V/3V 40mA/20mA 10-Pin VSSOP T/R
Chip1Stop:
Step-Up Charge Pump Regulator Single-Cell to 3.0V/3.3V, 20mA Dual Output, High Efficiency Charge Pump Charge Pump STPUP 1.8V to 3.6V/3V 40mA/20mA 10-Pin VSSOP T/R
Verical:
Charge Pump STPUP 1.8V to 3.6V/3V 40mA/20mA 10-Pin VSSOP T/R
DeviceMart:
IC REG BOOST SWITCHED CAP 10MSOP
输出接口数 2
输出电压 3.60 V
输出电流 40mA, 20mA
耗散功率 0.424 W
静态电流 35.0 µA
跌落电压 200 mV
调节输出数 2
输出功率 424 mW
开关频率 700 kHz
过温保护 No
拓扑结构 Boost
输入电压Max 1.8 V
输入电压Min 0.9 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 424 mW
电源电压 0.9V ~ 1.8V
输入电压 0.9V ~ 1.8V
安装方式 Surface Mount
引脚数 10

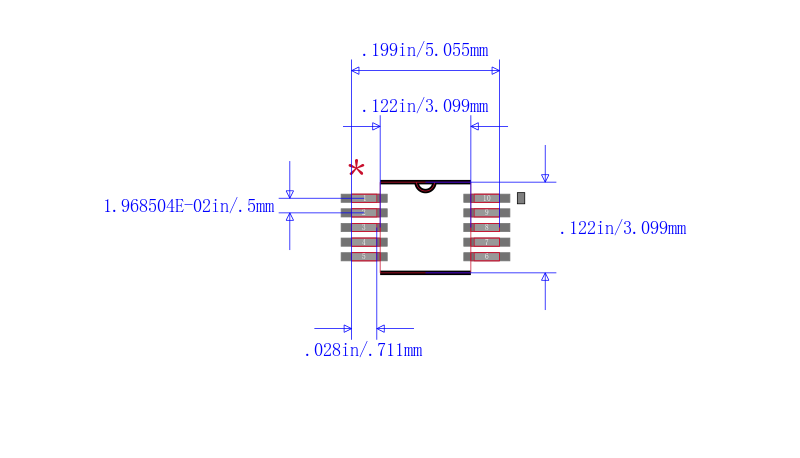

封装 VSSOP-10
封装 VSSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS60303DGSR TI 德州仪器 | 当前型号 | 当前型号 |
TPS60303DGSG4 德州仪器 | 类似代替 | TPS60303DGSR和TPS60303DGSG4的区别 |
TPS60303DGS 德州仪器 | 类似代替 | TPS60303DGSR和TPS60303DGS的区别 |
