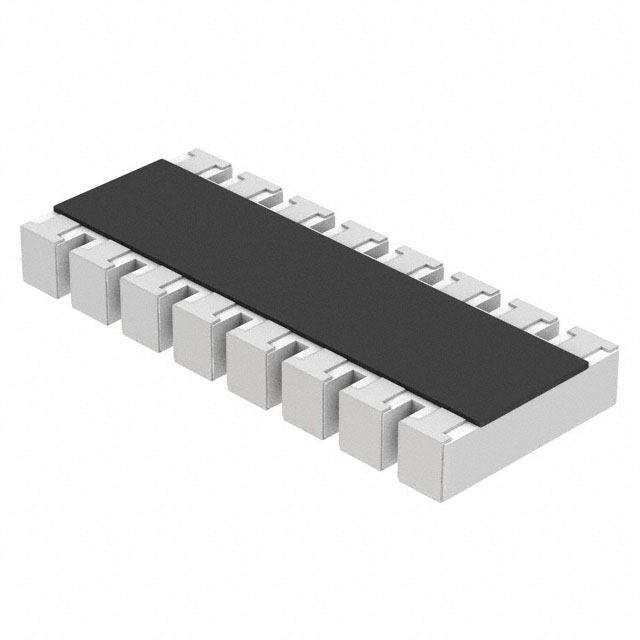

电阻器网络与阵列 2.2K OHM 5%
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0602 Convex SMD Automotive T/R
得捷:

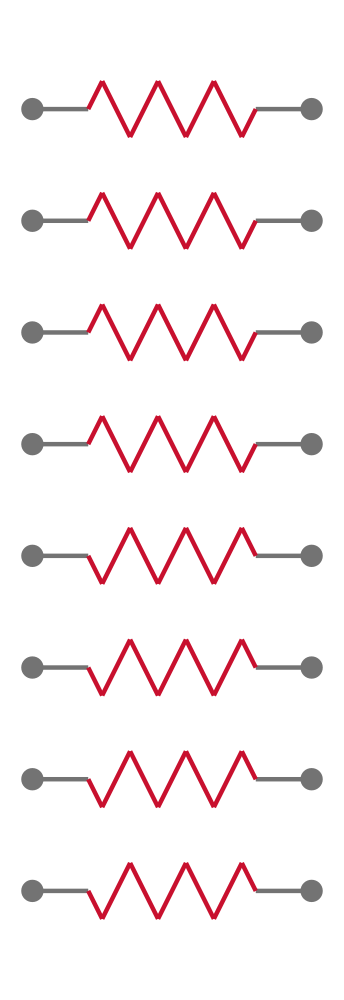

RES ARRAY 8 RES 2.2K OHM 1506
贸泽:
电阻器网络与阵列 2.2K OHM 5%
艾睿:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0602 Convex SMD Automotive T/R
Chip1Stop:
Res Thick Film Array 2.2K Ohm 5% 1/4W ±200ppm/°C ISOL 16-Pin 15068 X 0402 Convex SMD Punched Carrier T/R
Verical:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/C ISOL Molded 16-Pin 15068 X 0602 Convex SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS EXB-2HV222JV Resistor Array, Chip, 8 Elements 1506
MASTER:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 16-Pin 15068 X 0602 Convex SMD Automotive T/R
Online Components:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL Molded 16-Pin 15068 X 0602 Convex SMD Automotive T/R
Electro Sonic:
Res Thick Film Array 2.2K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 16-Pin 15068 X 0602 Convex SMD Automotive T/R
触点数 16
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.25 W
电阻 2.2 KΩ
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 16
封装 SMD

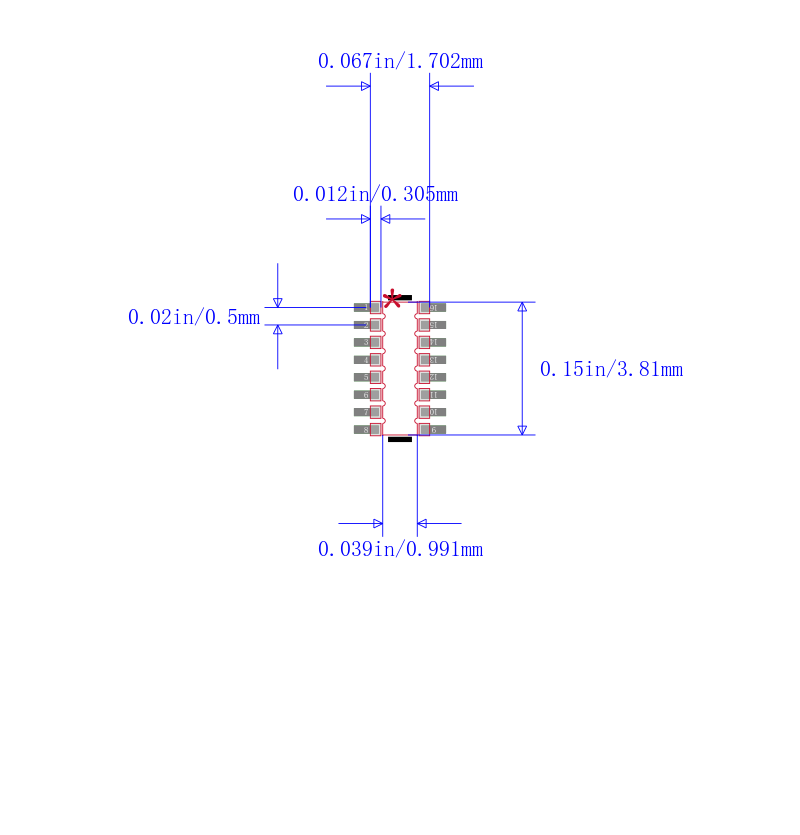

长度 3.8 mm
宽度 1.6 mm
高度 0.45 mm
封装 SMD
厚度 450 µm
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 汽车级AEC-Q200, 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210020
