F0603E 系列 电流限制 32 V 3 A 0603 SMT 薄膜 保险丝
A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 3. It has 2 terminals. The F0603E3R00FSTR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum DC voltage rating is 32 VDC. This product is 1.6 mm long, 0.63 mm tall and 0.81 mm deep.
额定电压DC 32 V
额定电压AC 32 V
额定电流 3 A
电阻 0.03 Ω
额定电压 32 V
额定电压DC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603

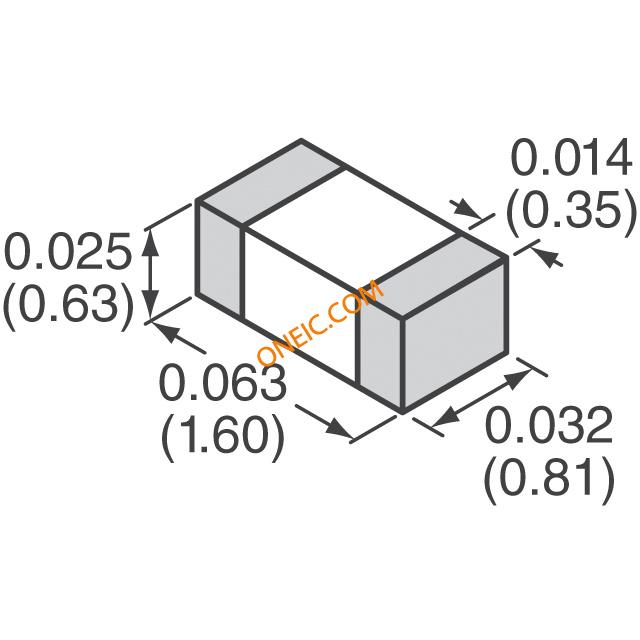

长度 1.6 mm
宽度 0.81 mm
高度 0.63 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
F0603E3R00FSTR AVX 艾维克斯 | 当前型号 | 当前型号 |
F0603E2R00FSTR 艾维克斯 | 类似代替 | F0603E3R00FSTR和F0603E2R00FSTR的区别 |
F0603E1R00FSTR 艾维克斯 | 类似代替 | F0603E3R00FSTR和F0603E1R00FSTR的区别 |
F0402E0R75FSTR 艾维克斯 | 类似代替 | F0603E3R00FSTR和F0402E0R75FSTR的区别 |
