LDS3985 系列 6 V 300 mA 超低压差-低噪声 BiCMOS 稳压器
Don"t let unpredictable voltage levels ruin your circuit! Use this LDO linear regulator from STMicroelectronics to control your voltage levels! Its typical dropout voltage at current is 0.0004@1mA|0.06@150mA|0.15@300mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.55Typ A. This will operate at a minimum voltage of 2.5 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 0.004%/mA your circuit is capable of maintaining a constant voltage level at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.002@1mA|0.1@150mA|0.25@300mA V.
输出接口数 1
输出电压 2.5 V
输出电流 300 mA
供电电流 150µA ~ 300µA
静态电流 0.085 mA
跌落电压 0.0004V @1mA
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Min 2.5 V
输出电流Max 0.55 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±2 %
输入电压 6V ~ 2.5V
安装方式 Surface Mount
引脚数 5

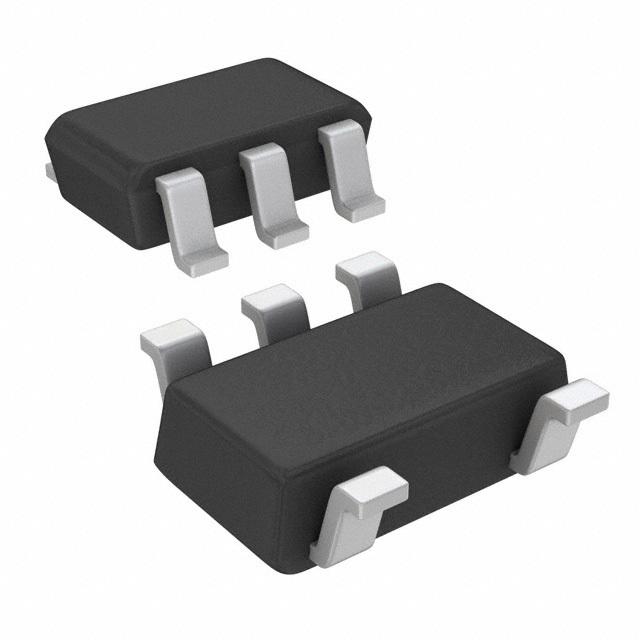

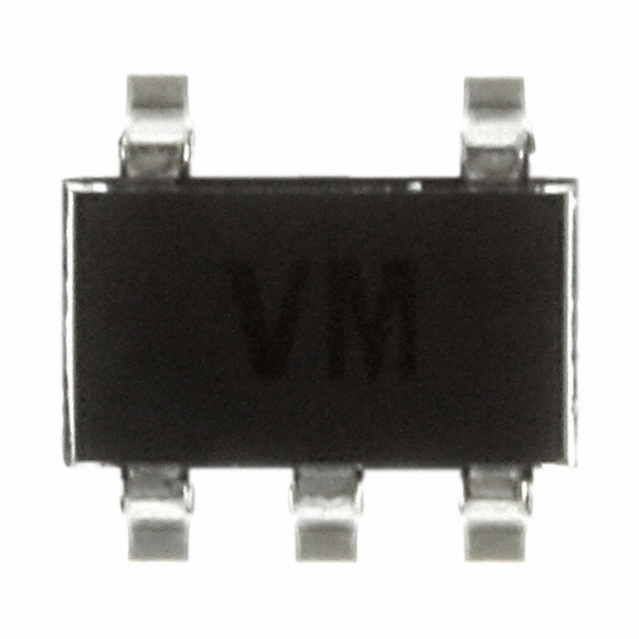

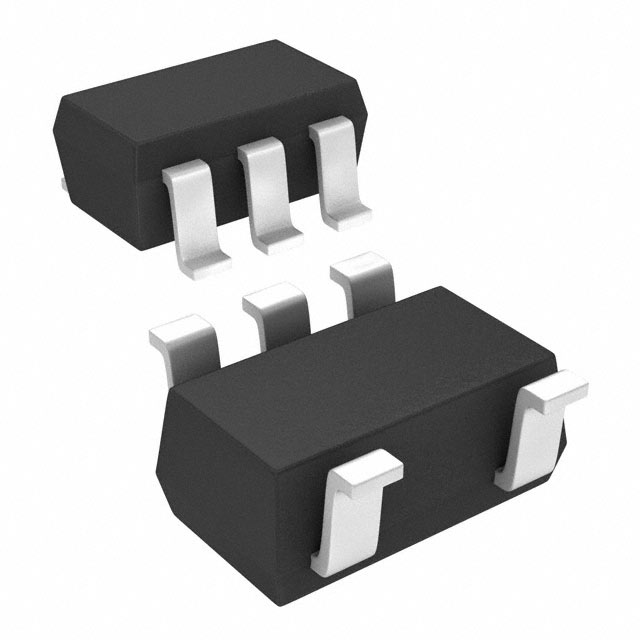

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LDS3985M25R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
MIC5265-2.5YD5 微芯 | 功能相似 | LDS3985M25R和MIC5265-2.5YD5的区别 |
SIP21106DT-25-E3 Vishay Siliconix | 功能相似 | LDS3985M25R和SIP21106DT-25-E3的区别 |
