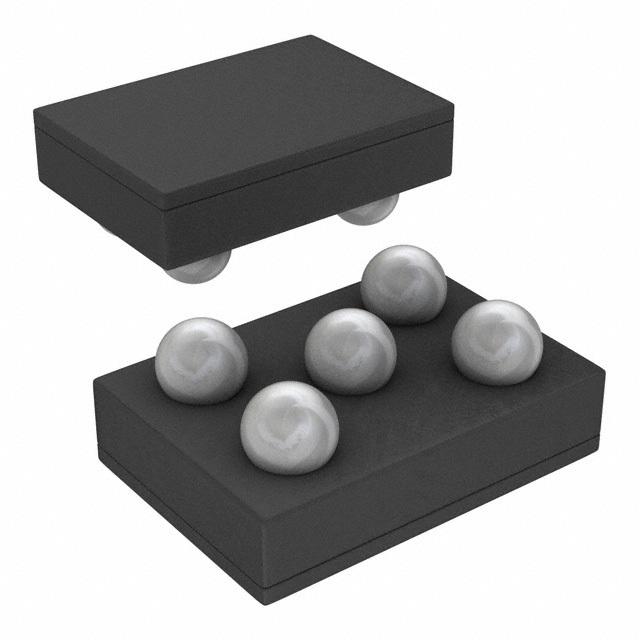

LP3983微功耗，低静态电流， CMOS电压稳压器DSBGA包装 LP3983 Micropower, Low Quiescent Current, CMOS Voltage Regulator in DSBGA Package
* Miniature 5 Pin Package * Logic Controlled Enable * No Noise Bypass Capacitor Required * Stable with Low ESR Ceramic Capacitors * Fast Turn ON * Short Circuit Protection * Input Voltage Range: 2.5V to 6.0V * Output Voltages: 1.6V, 1.8V, and 2.5V * Output Current: 5 mA * Output Capacitors: 1µF Low ESR * Virtually Zero IQ Disabled: 1.0 µA * Low IQ Enabled: 14 µA * PSRR: 10 dB * Fast Start Up: 170 µs * 5 Bump Thin DSBGA Package
得捷:
IC REG LINEAR 1.6V 5MA 5DSBGA
艾睿:
LDO Regulator Pos 1.6V 0.005A 5-Pin DSBGA T/R
安富利:
The LP3983 is a fixed voltage low current regulator.The LP3983 is ideally suited to standby type applications in battery powered equipment, it allows the lifetime of the battery to be maximized. The device can be controlled via an Enabledisable control and can thus be used by the system to further extend the battery lifetime by reducing the power consumption to virtually zero.Performance is specified for a -40°C to 125°C temperature range.For output voltages other than those stated and alternative package options.
Win Source:
IC REG LDO 1.6V 5MA 5DSBGA
