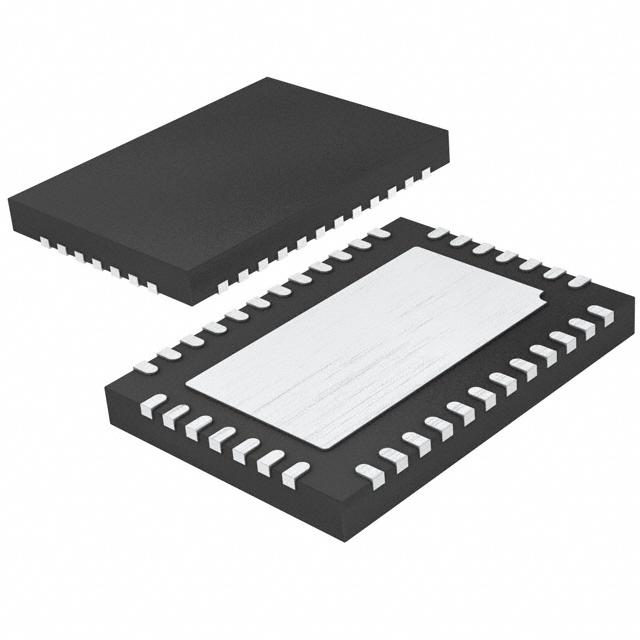

LINEAR TECHNOLOGY LTC3859ALIUHF#PBF 直流/直流控制器, 4.5V至38V, 3路输出, 同步降压/ 降压-升压, 585kHz, QFN-38
Need to change voltage levels in a DC circuit? Use the synchronous boost/buck DC voltage controller from . This DC voltage controller has 3 outputs. With an output that has a voltage of 0.8 to 24|60Max V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 38 V. This part offers a switching frequency of 50 to 900 kHz in order to work properly. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
电源电压DC 4.50V min
输出接口数 3
针脚数 38
开关频率 585 kHz
占空比 100 %
输入电压Max 38 V
输入电压Min 4.5 V
输出电流Max 25 a
最大占空比 99 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 38 V
电源电压Min 4.5 V
输入电压 4.5V ~ 38V
安装方式 Surface Mount
引脚数 38
封装 QFN-38
封装 QFN-38
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3859ALIUHF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3859ALIUHF#TRPBF 凌力尔特 | 完全替代 | LTC3859ALIUHF#PBF和LTC3859ALIUHF#TRPBF的区别 |
LTC3859ALHUHF#PBF 凌力尔特 | 类似代替 | LTC3859ALIUHF#PBF和LTC3859ALHUHF#PBF的区别 |
LTC3859ALMPUHF#PBF 凌力尔特 | 类似代替 | LTC3859ALIUHF#PBF和LTC3859ALMPUHF#PBF的区别 |
