MA180020

MICROCHIP  MA180020  子板, PIC18F87J11 PIM

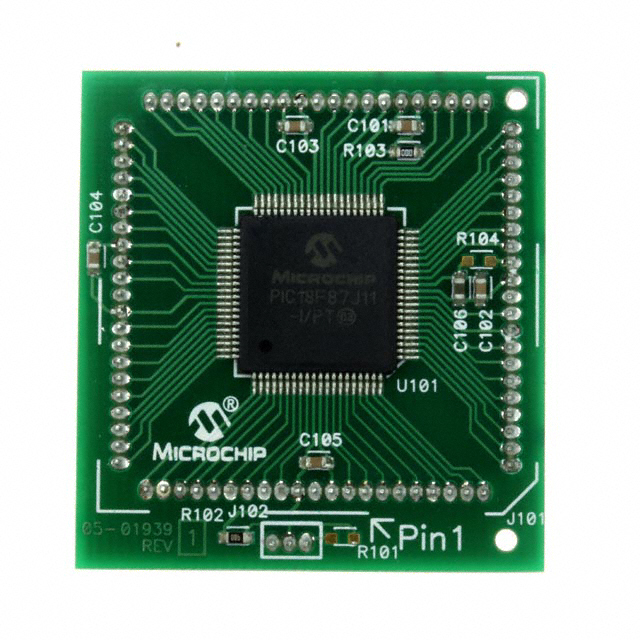

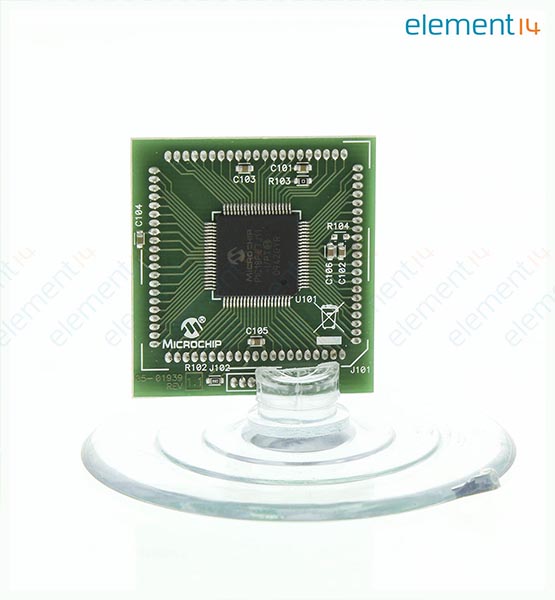

The is a PIC18F87J11 Plug-In module PIM. Plug-in module designed to feature the PIC18F87J11 device. Interfaces directly to the PIC18 explorer board DM183032 for evaluation or demo purposes. Processor plug-In modules are small circuit boards to be used with the various development boards to evaluate various MCU families. These plugs into the main processor socket of the development boards so that different microcontrollers can be used for prototyping, demonstration or development. This processor PIM includes a 80-pin PIC18F87J11 MCU sample. The PIM plugs into PIC18 explorer board DM183032 or HPC explorer board DM183022.

.

48MHz and 12MIPS at 3V

.

Flash 10,000 endurance, 20 years retention

.

Digital input of 5V

.

Enhanced ICD with 3 HW breakpoints

.

Internal 8MHz oscillator

.

NanoWatt technology

.

Parallel master port PMP
