六反相器漏极开路输出
By driving the input to the transmission line this buffer and line driver by will amplify any signal. With an open drain output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 6 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 5.00 V
无卤素状态 Halogen Free
输出接口数 6
电路数 6
通道数 6
逻辑门个数 6
输入数 6
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

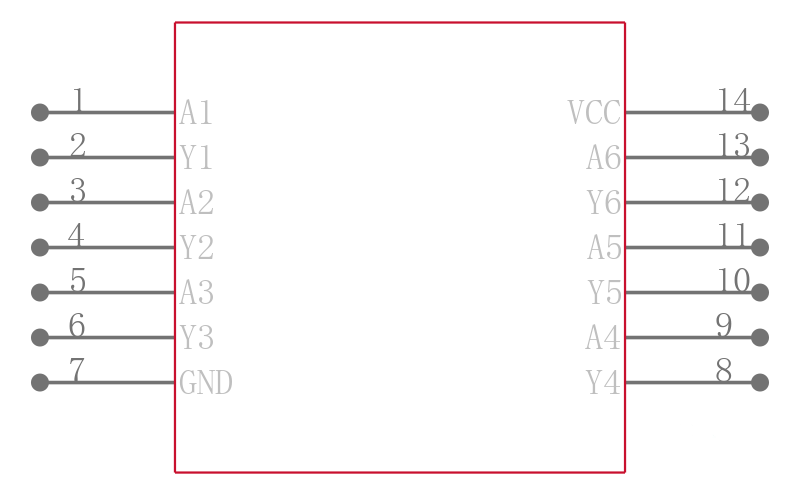

引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74AC05DR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
74AC05SCX 飞兆/仙童 | 完全替代 | MC74AC05DR2G和74AC05SCX的区别 |
74AC05SC 飞兆/仙童 | 完全替代 | MC74AC05DR2G和74AC05SC的区别 |
MC74AC05DG 安森美 | 类似代替 | MC74AC05DR2G和MC74AC05DG的区别 |
