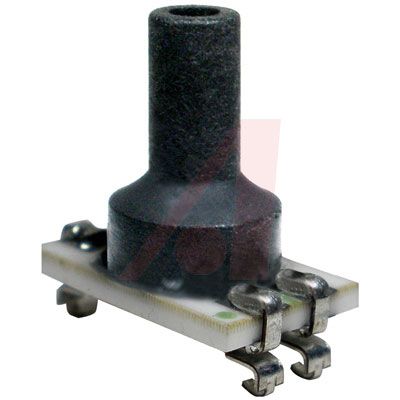

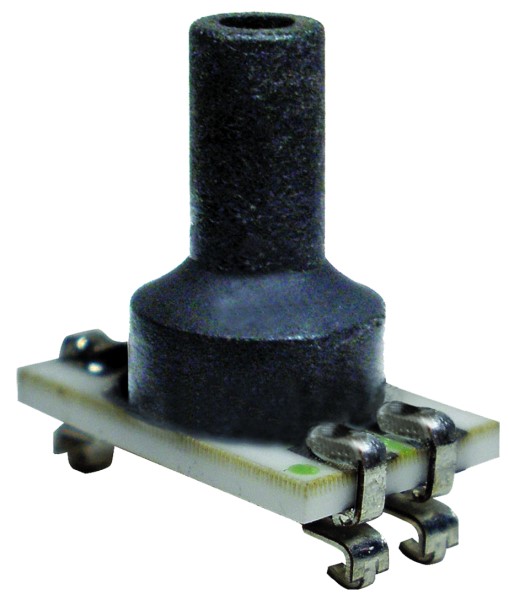

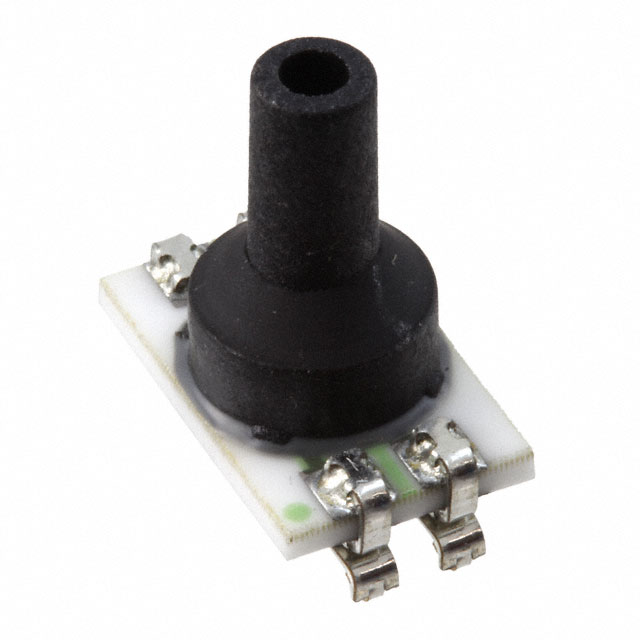

HONEYWELL TBPMLNN060PGUCV 压力传感器, 无放大, 模拟, 60 psi, 量规, 5 VDC, 单轴无倒钩, 600 µA
排气式压力计 压力 60PSI(413.69kPa) 公型 - 0.13"(3.18mm)管 0mV ~ 6.5mV(5V) 4-SMD,J 引线,顶端口
得捷:
SENSOR 60PSIG 0.13" .0065V 4SMT
立创商城:
TBPMLNN060PGUCV
e络盟:
压力传感器, 无放大, 60 psi, 模拟, 量规, 5 VDC, 单轴无倒钩, 600 µA
艾睿:
Board Mount Pressure Sensor 0psi to 60psi Gage 4-Pin SMD Module
Allied Electronics:
Unamplified, Compensated, TBP, SMT, single axial barbless port , 60 psi, Guage
Chip1Stop:
Pressure Sensor 0psi to 60psi Gage 4-Pin SMD Module
Verical:
Board Mount Pressure Sensor 0psi to 60psi Gage 4-Pin SMD Module
Newark:
# HONEYWELL TBPMLNN060PGUCV Pressure Sensor, Unamplified, Analogue, 60 psi, Gauge, 5 VDC, Single Axial Barbless, 600 µA
MASTER:
Basic Board Mount Pressure Sensors: TBP Series, ± 0.15% Accuracy, Compensated/Unamplified Analog mV Output, SMT, Single Axial Barbless Port, 60 psi Gage, 1.8-12V Supply, No Gel Coating in Media Path
Powell:
Basic Board Mount Pressure Sensors: TBP Series, ± 0.15% Accuracy
Online Components:
Basic Board Mount Pressure Sensors: TBP Series, ± 0.25% Accuracy, Compensated/Unamplified, Analog mV Output, DIP, Single Axial Barbed Port, 250 ...
额定电压DC 5.00 V
供电电流 600 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.15 %
额定电压 5 VDC
电源电压 1.5V ~ 12V
安装方式 Surface Mount
引脚数 4
封装 SMD-6
高度 10.94 mm
封装 SMD-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
制造应用 商业, HVAC, 工业, Commercial, 医用, 板式安装, Medical, 传感与仪器, Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 9026204000
